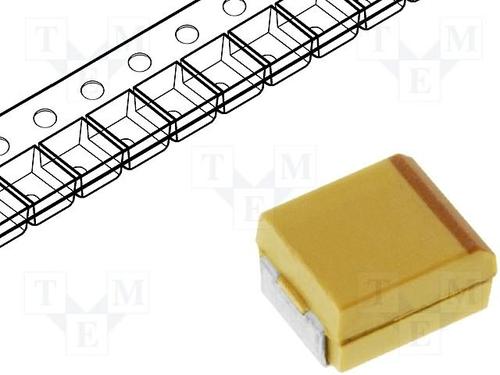

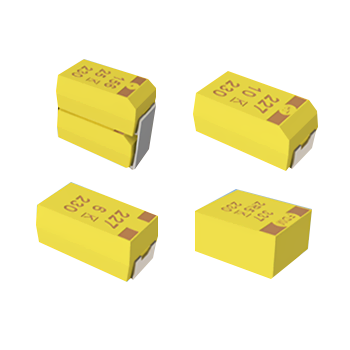

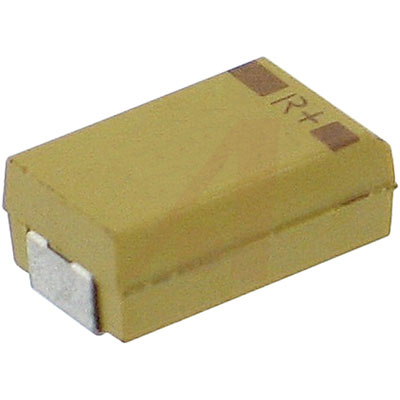

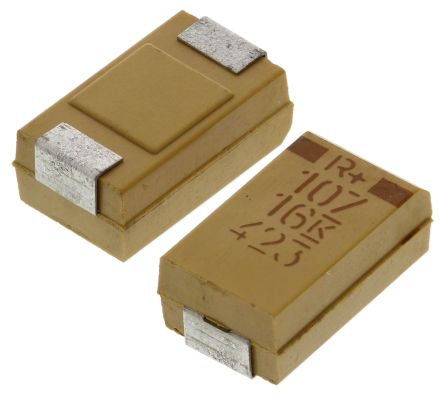

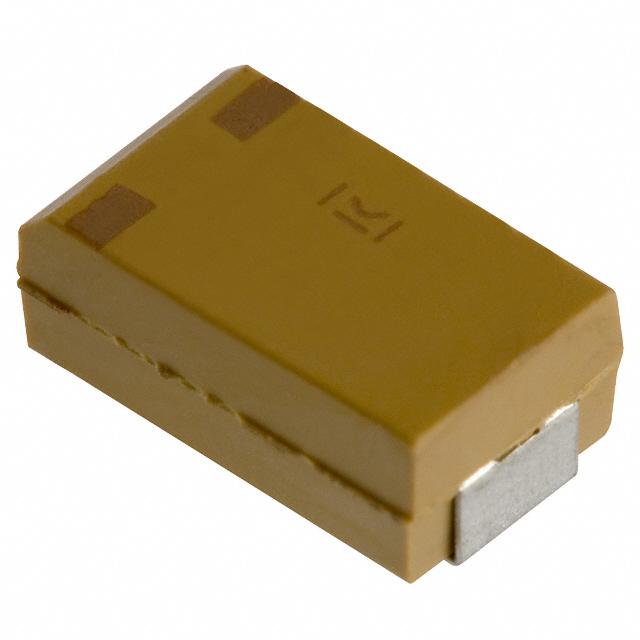

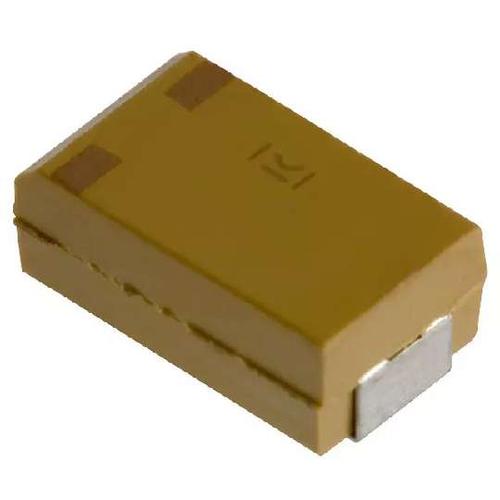

KEMET T495D107K016ATE125 表面贴装钽电容, T495系列, 100 µF, ± 10%, 16 V, 2917 [7343 公制], D
钽器
得捷:
CAP TANT 100UF 10% 16V 2917
欧时:
### T495 系列KEMET T495 系列钽质表面安装电容器,设计用于需要高浪涌电流和高波纹电流容量的要求苛刻的应用。T495 系列提供低 ESR 和极佳的电容稳定性,并且耐受高浪涌电流。典型应用包括直流-直流转换器、便携式电子产品、电信、以及需要高波纹电流容量的控制装置。 **特点和优势:** 高浪涌电流容量 高波纹电流能力 稳态加速老化 符合 RoHS 标准且无铅端接 达到或超过 EIA 标准 535BAAC 采用胶带和卷盘包装,符合 EIA 481 可选镀金端接 100% 对 C、D、E、U、V、X 尺寸进行浪涌电流测试 0.1 μF 至 1000 μF 的电容值 容差为 ±10% 和 ±20% 额定电压 2.5 V 直流至 50 V 直流 经测试符合 DSCC 95158 工作温度范围 -55˚C 至 +125˚C 尺寸(毫米) --- 外壳代码 | L±0.2 | W±0.2 | H0.2 | F±0.1 | S±0.3 | A 最小值 C | 6.0 | 3.2 | 2.5 | 2.2 | 1.3 | 2.5 D | 7.3 | 4.3 | 2.8 | 2.4 | 1.3 | 3.8 V | 7.3 | 4.3 | 2 | 2.4 | 1.3 | 3.8 X | 7.3 | 4.3 | 4.0 | 2.4 | 1.3 | 3.8 ![http://china.rs-online.com/largeimages/L262473-01.gif]http://china.rs-online.com/largeimages/L262473-01.gif![http://china.rs-online.com/largeimages/LF262473-10.gif]http://china.rs-online.com/largeimages/LF262473-10.gif ### SMT 125°C
立创商城:
100uF ±10% 16V
e络盟:
表面贴装钽电容, MnO2, 100 µF, 16 V, 2917 [7343 公制], T495系列, ± 10%, -55 °C
艾睿:
This T495D107K016ATE125 capacitor from Kemet is made from tantalum solid and has a high capacitance value with a low footprint design. It can withstand a voltage of 16 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 16 μA. It has a tolerance of 10%. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep. Its capacitance value is 100uF.
Allied Electronics:
100uF Solid MnO2 Tantalum Electrolytic Capacitor; 16 V dc +/-10%; T495 Series
安富利:
Cap Tant Solid 100uF 16V D CASE 10% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.125 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 100uF 16V D CASE 10% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.125 Ohm 125 C T/R
TME:
Capacitor: tantalum; low ESR; 100uF; 16VDC; Case: D; 2917; ESR:125mΩ
Verical:
Cap Tant Solid 100uF 16V D CASE 10% 7.3 X 4.3 X 2.8mm Inward L SMD 7343-31 0.125 Ohm 125C Automotive T/R
Newark:
# KEMET T495D107K016ATE125 Surface Mount Tantalum Capacitor, 100 µF, 16 V, T495 Series, ± 10%, 2917 [7343 Metric]
额定电压DC 16.0 V
工作电压 16 VDC
电容 100 µF
等效串联电阻ESR 125 mΩ
容差 ±10 %
产品系列 T495
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-31
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2.8 mm
封装公制 7343-31
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @85℃
制造应用 Industrial, 车用, 电源管理, Portable Devices, 工业, Automotive, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T495D107K016ATE125 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T495D107K016AHE125 基美 | 完全替代 | T495D107K016ATE125和T495D107K016AHE125的区别 |
T491D107K010AT 基美 | 类似代替 | T495D107K016ATE125和T491D107K010AT的区别 |
T491D107M016AT 基美 | 类似代替 | T495D107K016ATE125和T491D107M016AT的区别 |
