具有反向电流保护和使能功能的 150mA、30V、超低 IQ、低压降稳压器 5-SOT-23 -40 to 125
PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-23-5
得捷:
IC REG LINEAR 1.8V 150MA SOT23-5
立创商城:
TPS70918DBVR
德州仪器TI:
150-mA, 30-V, ultra-low-IQ, low-dropout voltage regulator with reverse current protection and enable
艾睿:
Say goodbye to unstable voltages with this LDO TPS70918DBVR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.245@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 20mVTyp and line regulation of 3mVTyp. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R
输出接口数 1
输出电压 1.8 V
输出电流 150 mA
供电电流 2.05µA ~ 350µA
静态电流 1.00 µA
输出电容类型 Ceramic
跌落电压 0.245V @50mA
调节输出数 1
过温保护 Yes
输入电压Max 30 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 30 V
安装方式 Surface Mount
引脚数 5

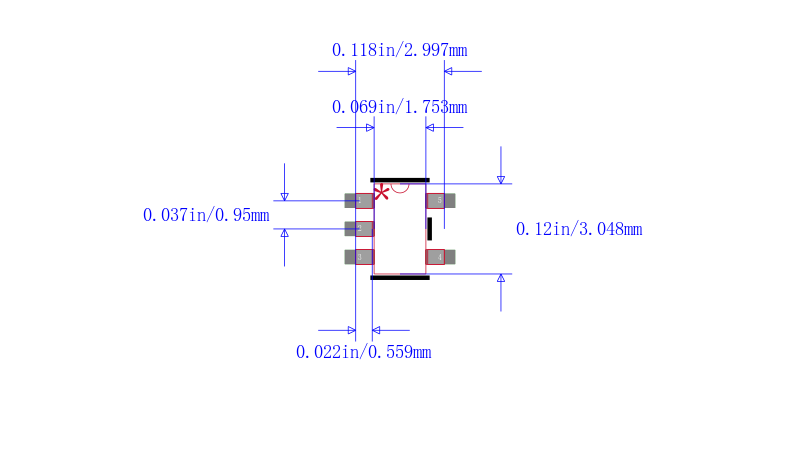

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS70918DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS70918DBVT 德州仪器 | 类似代替 | TPS70918DBVR和TPS70918DBVT的区别 |
TPS70918QDBVRQ1 德州仪器 | 类似代替 | TPS70918DBVR和TPS70918QDBVRQ1的区别 |
