钽电容, 47UF, 10V, 2012-12
47µF Molded Tantalum Capacitors 10V 0805 2012 Metric 3.2Ohm
e络盟:
钽电容, 47UF, 10V, 2012-12
艾睿:
Need a high capacitance value with a low footprint design? Look no further this TLJR476M010R3200 tantalum solid capacitor from AVX will get you results. It can withstand a voltage of 10 VDC. Its leakage current is 9.4 μA. This solid capacitor has a maximum operating temperature of 125 °C. This product is 2.05 mm long, 1.2Max mm tall and 1.3 mm deep. Its capacitance value is 47uF. It has a tolerance of 20%.
安富利:
Cap Tant Solid 47uF 10V R CASE 20% 2.05 X 1.3 X 1.2mm SMD 2012-12 3.2 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 47uF 10V R CASE 20% 2.05 X 1.3 X 1.2mm SMD 2012-12 3.2 Ohm 125ÂÂ℃ T/R
Verical:
Cap Tant Solid 47uF 10V R CASE 20% 2.05 X 1.3 X 1.2mm Inward L SMD 2012-12 3.2 Ohm 125C T/R
Newark:

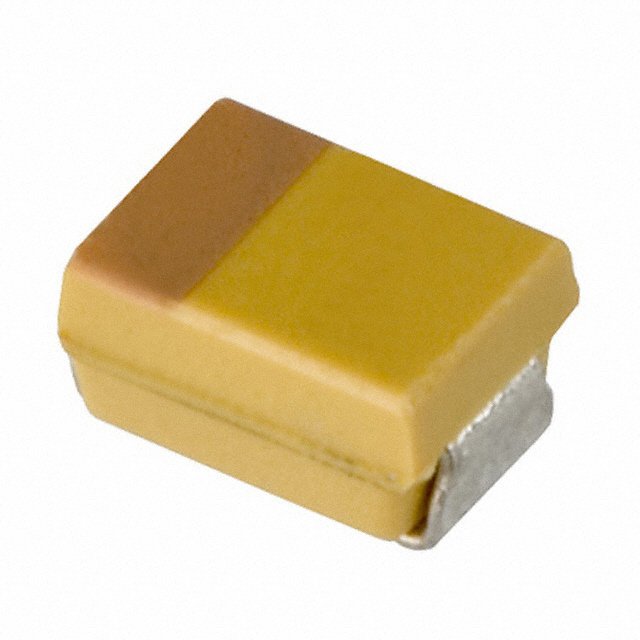

# AVX TLJR476M010R3200 Surface Mount Tantalum Capacitor, 47 µF, 10 V, TLJ Series, ± 20%, 0805 [2012 Metric]
Win Source:
CAP TANT 47UF 20% 10V 0805 / 47 µF Molded Tantalum Capacitors 10 V 0805 2012 Metric 3.2Ohm
额定电压DC 10.0 V
电容 47 µF
等效串联电阻ESR 3.2 Ω
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.2 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLJR476M010R3200 AVX 艾维克斯 | 当前型号 | 当前型号 |
TLJP476M010R3200 艾维克斯 | 完全替代 | TLJR476M010R3200和TLJP476M010R3200的区别 |
TLJA476M010R0600 艾维克斯 | 类似代替 | TLJR476M010R3200和TLJA476M010R0600的区别 |
TLJR476M006R3200 艾维克斯 | 类似代替 | TLJR476M010R3200和TLJR476M006R3200的区别 |
