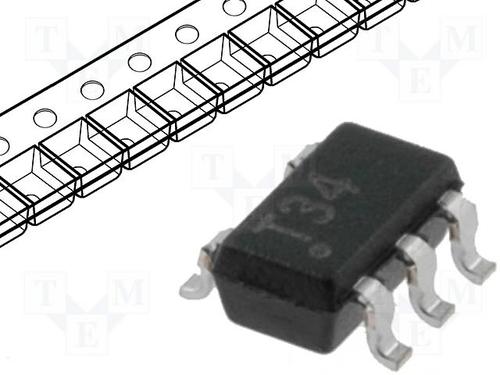

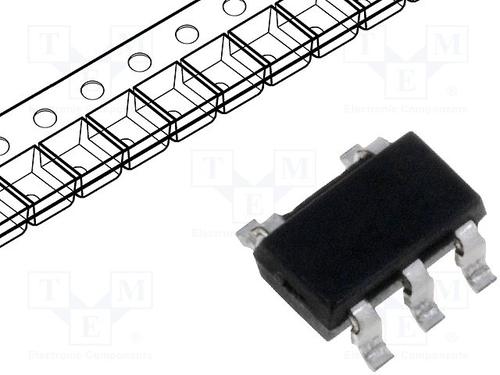

TEXAS INSTRUMENTS TPS73133DBVT 芯片, 线性稳压器, 3.3V, SOT23-5
The is a 3.3V fixed output low-dropout LDO Linear Regulator with reverse current protection uses a new topology, an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low equivalent series resistance ESR and even allows operation without a capacitor. The device also provides high reverse blockage low reverse current and ground pin current that is nearly constant over all values of output current. The device uses an advanced BiCMOS process to yield high precision while delivering very low-dropout LDO voltages and low ground pin current. Current consumption, when not enabled, is less than 1µA and ideal for portable applications. The extremely low output noise is ideal for powering VCOs. These devices are protected by thermal shutdown and fold-back current limit.
输出接口数 1
输入电压DC 5.50V max
输出电压 3.3 V
输出电流 150 mA
供电电流 550µA ~ 750µA
通道数 1
针脚数 5
耗散功率 0.56 W
静态电流 0.4 mA
输出电容类型 Ceramic
跌落电压 0.03V @150mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 3.3 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 560 mW
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 医用, 无线, 电源管理, 便携式器材, 替代能源, 消费电子产品, 建筑自动化
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73133DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS73133DBVR 德州仪器 | 完全替代 | TPS73133DBVT和TPS73133DBVR的区别 |
TPS73133DBVTG4 德州仪器 | 类似代替 | TPS73133DBVT和TPS73133DBVTG4的区别 |
TPS73133DBVRG4 德州仪器 | 类似代替 | TPS73133DBVT和TPS73133DBVRG4的区别 |
