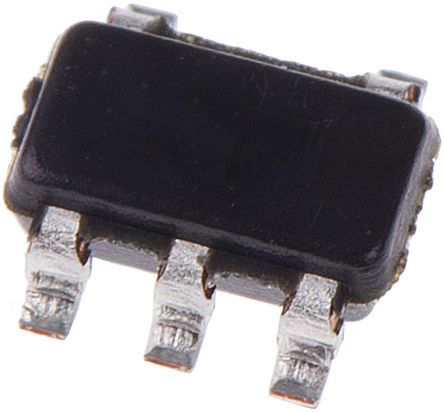

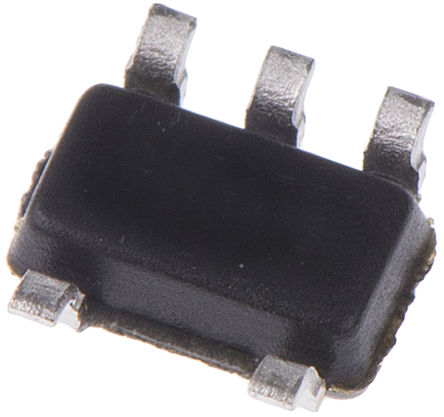

TPS78236DDCT

LDO（低压降）线性电压调节器，150mA，3.0V 至 3.9V，Texas Instruments

LDO（低压降）线性稳压器，150mA，3.0V 至 3.9V，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 3.6V 150MA SOT23-5

立创商城:
TPS78236DDCT

德州仪器TI:
150-mA, nano-IQ, low-dropout voltage regulator with enable from -40°C to +125°C

欧时:
### LDO（低压降）线性稳压器，150mA，3.0V 至 3.9V，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
低压差稳压器 Sgl Fixed Output LDO

e络盟:
TEXAS INSTRUMENTS  TPS78236DDCT  固定电压稳压器, LDO, 2.2V至5.5V, 130mV压差, 3.6V输出, 150mA输出, TSOT-23-5

艾睿:
Use the LDO TPS78236DDCT linear regulator from Texas Instruments to maintain a constant output voltage. It has an overall accuracy of ±1 %. This device has a maximum power dissipation of 500 mW. Its typical dropout voltage at current is 0.13@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 2.2 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 3.6 V, this is power management at its best. At a load regulation of 2%Typ and line regulation of 1%Typ your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. The maximum dropout voltage is 0.25@150mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 3.6V 0.15A 5-Pin SOT T/R

Chip1Stop:
LDO Regulator Pos 3.6V 0.15A 5-Pin SOT T/R

Verical:
LDO Regulator Pos 3.6V 0.15A 5-Pin TSOT-23 T/R

Newark:
# TEXAS INSTRUMENTS  TPS78236DDCT  Fixed LDO Voltage Regulator, 2.2V to 5.5V, 130mV Dropout, 3.6Vout, 150mAout, TSOT-23-5

DeviceMart:
IC REG LDO 3.6V .15A 5SOT
