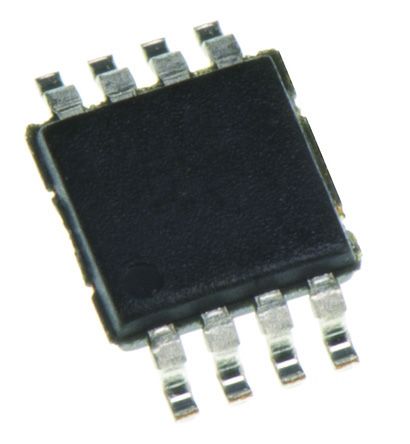

TEXAS INSTRUMENTS TPS7A4101DGNT 电压稳压器, LDO, 可调, 7V至50V输入, 290mV压差, 1.175V至48V/50mA输出, MSOP-8
可调 LDO(低压降)线性电压稳压器,高达 250mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN POS ADJ 50MA 8HVSSOP
欧时:
Texas Instruments TPS7A4101DGNT LDO 稳压器, 可调输出, 1.175 → 48 V输出, 50mA最大输出, 2.5%精确度
立创商城:
正 Vin=50V Vout=1.175V~48V 50mA 65dB@100Hz
德州仪器TI:
50-mA, 50-V, low-IQ, adjustable low-dropout voltage regulator with enable
e络盟:
TEXAS INSTRUMENTS TPS7A4101DGNT 电压稳压器, LDO, 可调, 7V至50V输入, 290mV压差, 1.175V至48V/50mA输出, MSOP-8
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TPS7A4101DGNT linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.29@20mA|0.78@50mA V. This device has a maximum power dissipation of 1830 mW. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.05 A. This will operate at a minimum voltage of 7 V and a maximum voltage of 50 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.161 to 48 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.31%VoTyp and line regulation of 0.03%VoTyp. Its maximum power dissipation is 1830 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 1.3@50mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 1.161V to 48V 0.05A 8-Pin HTSSOP EP T/R
Chip1Stop:
LDO Regulator Pos 1.161V to 48V 0.05A Automotive 8-Pin HVSSOP EP T/R
Verical:
LDO Regulator Pos 1.161V to 48V 0.05A Automotive 8-Pin HVSSOP EP T/R
Newark:
# TEXAS INSTRUMENTS TPS7A4101DGNT LDO Voltage Regulator, Adjustable, 7V to 50V in, 290mV drop, 1.175V to 48V/50mA out, MSOP-8
DeviceMart:
IC REG LDO ADJ 50MA 8MSOP
输出接口数 1
输出电压 1.161V ~ 48V
输出电流 50 mA
供电电流 65 µA
针脚数 8
耗散功率 1.83 W
静态电流 0.025 mA
输出电容类型 Ceramic
跌落电压 290 mV
调节输出数 1
输入电压Max 50 V
输入电压Min 7 V
输出电压Max 48 V
输出电压Min 1.175 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1830 mW
精度 ±1 %
输入电压 7V ~ 50V
安装方式 Surface Mount
引脚数 8
封装 PowerPad-MSOP-8

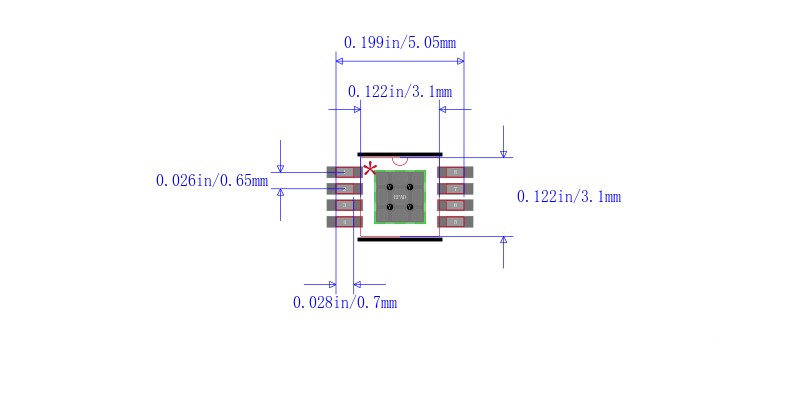

长度 3.1 mm
宽度 3.1 mm
高度 0.95 mm
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS7A4101DGNT TI 德州仪器 | 当前型号 | 当前型号 |
TPS7A4101DGNR 德州仪器 | 类似代替 | TPS7A4101DGNT和TPS7A4101DGNR的区别 |
