TPS22966DPUT

双通道，超低电阻负载开关 Dual Channel, Ultra-Low Resistance Load Switch

Description

The TPS22966 is a small, low RON, dual-channel load switch with controlled turnon. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 6 A per channel. Each switch is independently controlled by an on and off input ON1 and ON2, which can interface directly with low-voltage control signals. In TPS22966, a 220-Ω on-chip load resistor is added for quick-output discharge when switch is turned off.

Features

• Input Voltage Range: 0.8 V to 5.5 V

• Integrated Dual-Channel Load Switch

• On-Resistance

   – RON = 16 mΩ at VIN = 5 V VBIAS = 5 V

   – RON = 16 mΩ at VIN = 3.6 V VBIAS = 5 V

   – RON = 16 mΩ at VIN = 1.8 V VBIAS = 5 V

• 6-A Maximum Continuous Switch Current per Channel

• Low Quiescent Current

   – 80 µA Both Channels

   – 60 µA Single Channel

• Low Control Input Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic

• Configurable Rise Time

• Quick Output Discharge QOD Optional

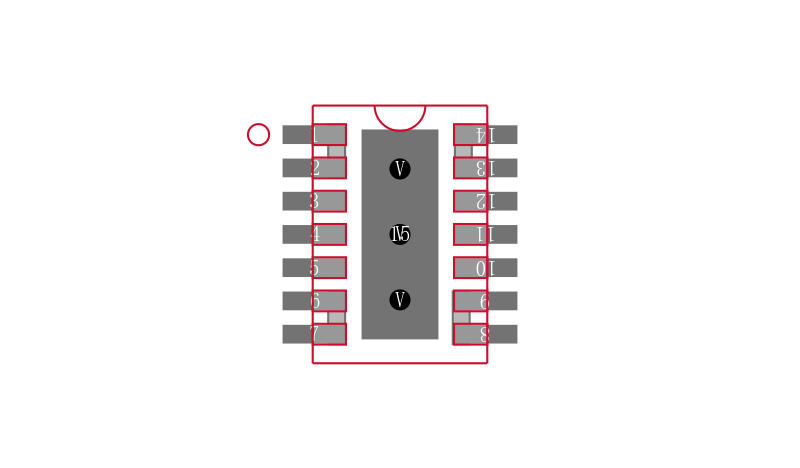

• SON 14-Pin Package With Thermal Pad

• ESD Performance Tested per JESD 22

   – 2-kV HBM and 1-kV CDM

Applications

• Ultrabook™

• Notebooks and Netbooks

• Tablet PCs

• Consumer Electronics

• Set-top Boxes and Residental Gateways

• Telecom Systems

• Solid-State Drives SSD
