LDO(低压降)线性稳压器,250mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,250mA,Texas Instruments
得捷:
IC REG LINEAR 5V 250MA 8SOIC
立创商城:
TPS76650DR
德州仪器TI:
250-mA, 10-V, low-IQ, low-dropout voltage regulator with power good & enable
欧时:
Texas Instruments TPS76650DR LDO 稳压器, 5 V输出, 250mA最大输出, ±3%精确度, 2.7 → 10 V输入, 0.904W
贸泽:
低压差稳压器 250-mA LDO
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TPS76650DR linear regulator from Texas Instruments. It has an overall accuracy of ±3 %. This device has a maximum power dissipation of 904 mW. Its typical dropout voltage at current is 0.14@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 10 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 0.5%Typ and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 904 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.25@250mA V.
安富利:
LDO Regulator Pos 5V 0.25A 8-Pin SOIC T/R
Verical:
LDO Regulator Pos 5V 0.25A 8-Pin SOIC T/R
Newark:
# TEXAS INSTRUMENTS TPS76650DR Fixed LDO Voltage Regulator, 2.7V to 10V, 140mV Dropout, 5Vout, 250mAout, SOIC-8
力源芯城:
超低静态电流250mA低压差稳压器
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 250mA 8-SOIC
DeviceMart:
IC REG LDO 5V .25A 8SOIC
额定功率 0.904 W
输出接口数 1
输出电压 5 V
输出电流 250 mA
供电电流 50 µA
耗散功率 0.904 W
静态电流 0.035 mA
输出电容类型 Tantalum
跌落电压 0.14V @250mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 5 V
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 904 mW
精度 ±3 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 8

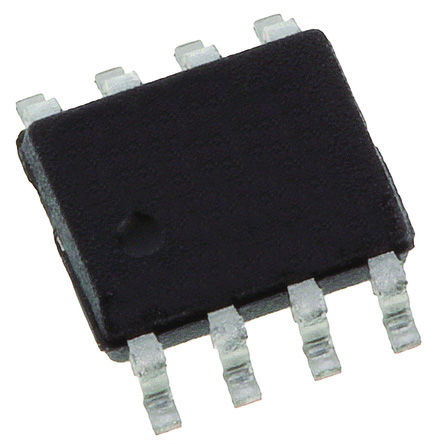

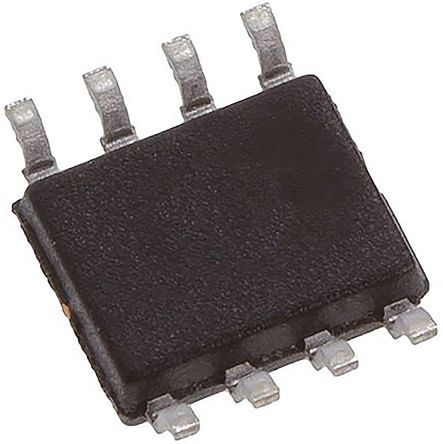

封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76650DR TI 德州仪器 | 当前型号 | 当前型号 |
TPS76650D 德州仪器 | 类似代替 | TPS76650DR和TPS76650D的区别 |
TPS76650DRG4 德州仪器 | 类似代替 | TPS76650DR和TPS76650DRG4的区别 |
TPS76650DG4 德州仪器 | 类似代替 | TPS76650DR和TPS76650DG4的区别 |
