LDO(低压降)线性电压调节器,最大 100mA,1.0V 至 2.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,最大 100mA,1.0V 至 2.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 2.7V 100MA SOT23-5
立创商城:
TPS76927DBVT
德州仪器TI:
100-mA, 10-V, low-IQ, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性电压调节器,最大 100mA,1.0V 至 2.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
Use this LDO TPS76927DBVT linear regulator from Texas Instruments to vary your voltage levels to your desired level. This device has a maximum power dissipation of 555 mW. Its typical dropout voltage at current is 0.071@100mA V. It has an overall accuracy of ±3 %. This voltage regulation device&s;s single output can produce a current up to 0.1 A. By only needing an input voltage of 2.7 V with a maximum of 10 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.7 V, this is power management at its best. At a load regulation of 12mVTyp and line regulation of 0.04%/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 555 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 2.7V 0.1A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 2.7V 0.1A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 2.7V 0.1A 5-Pin SOT-23 T/R
额定功率 0.555 W
输出接口数 1
输入电压DC 10.0V max
输出电压 2.7 V
输出电流 100 mA
耗散功率 0.555 W
静态电流 0.017 mA
输出电容类型 Tantalum
跌落电压 0.071V @100mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 555 mW
精度 ±3 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 5

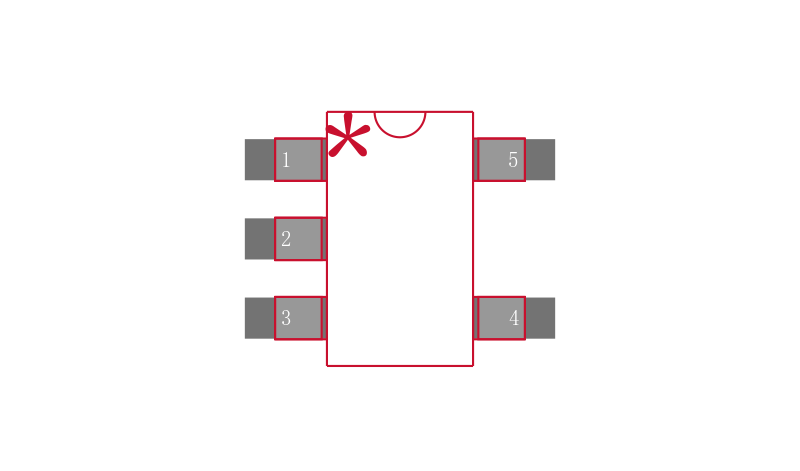

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76927DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS76927DBVR 德州仪器 | 完全替代 | TPS76927DBVT和TPS76927DBVR的区别 |
