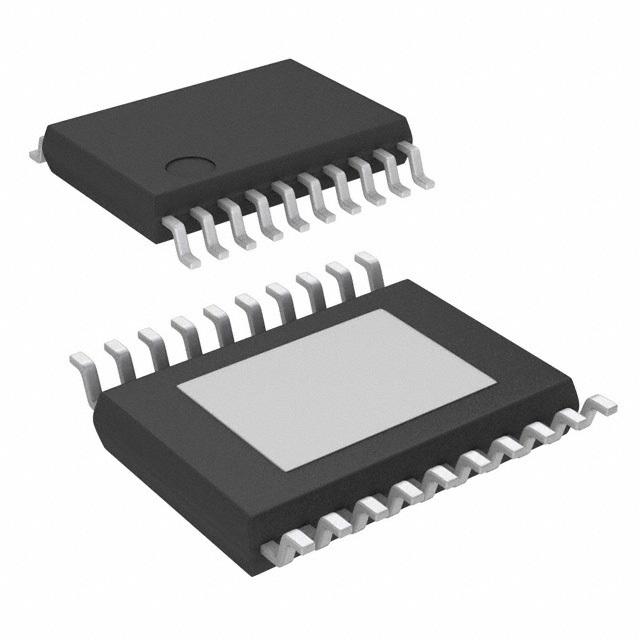

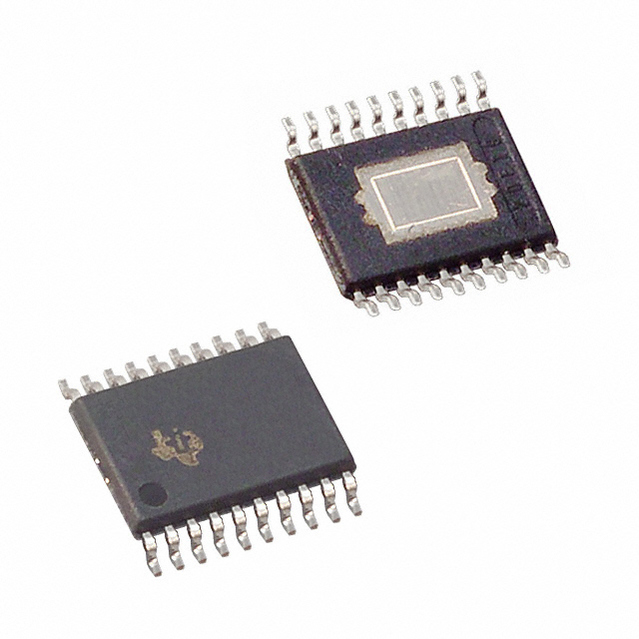

TPA6017A2PWPR

TEXAS INSTRUMENTS  TPA6017A2PWPR  音频功率放大器, AB, 2通道, 2 W, 4.5V 至 5.5V, HTSSOP, 20 引脚

The TPA6017A2 is a stereo audio power amplifier in a 20-pin TSSOP thermally enhanced package capable of delivering 2 W of continuous RMS power per channel into 3- loads. Internal gain control minimizes the number of external components needed, simplifying the design, and freeing up board space for other features.

Amplifier gain is internally configured and controlled by way of two terminals GAIN0 and GAIN1. Gain settings of 6 dB, 10 dB, 15.6 dB, and 21.6 dB inverting are provided.

得捷:
IC AMP CLASS AB STER 2W 20HTSSOP

立创商城:
TPA6017A2PWPR

德州仪器TI:
1.9-W, stereo, analog input Class-AB audio amplifier

e络盟:
TEXAS INSTRUMENTS  TPA6017A2PWPR  音频功率放大器, AB, 2通道, 2 W, 4.5V 至 5.5V, HTSSOP, 20 引脚

艾睿:
This TPA6017A2PWPR class D amplifier from Texas Instruments will work perfectly for boosting your output&s;s audio. Its maximum power dissipation is 2700 mW. It has a maximum load resistance of 8 Ohm. It has a differential input signal and a differential output signal. It has a 2-channel stereo output. This audio amplifier has a temperature range of -40 °C to 85 °C. This device uses a single power supply. Its typical PSRR is 77 dB.

安富利:
Audio Amp Speaker 2-CH Stereo 1.9W Class-AB 20-Pin HTSSOP EP T/R

Chip1Stop:
Audio Amp Speaker 2-CH Stereo 1.9W Class-AB 20-Pin HTSSOP EP T/R

Verical:
Audio Amp Speaker 2-CH Stereo 1.9W Class-AB 20-Pin HTSSOP EP T/R

Newark:
# TEXAS INSTRUMENTS  TPA6017A2PWPR  Audio Power Amplifier, AB, 2 Channel, 2 W, 4.5V to 5.5V, HTSSOP, 20 Pins

Win Source:
Amplifier IC 2-Channel Stereo Class AB 2W x 2 @ 3 Ohm 20-HTSSOP

DeviceMart:
IC AMP AUDIO PWR 2W STER 20TSSOP
