TPS76950DBVTG4

超低功耗100mA低压降线性稳压器 ULTRALOW-POWER 100-mA LOW-DROPOUT LINEAR REGULATORS

description

The TPS769xx family of low-dropout LDO voltage regulators offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. These regulators feature low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-terminal small outline integrated-circuit SOT-23 package, the TPS769xx series devices are ideal for micropower operations and where board space is at a premium.

100-mA Low-Dropout Regulator

Available in 1.2-V, 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5-V Fixed-Output and Adjustable Versions

Only 17 µA Quiescent Current at 100 mA

1 µA Quiescent Current in Standby Mode

Dropout Voltage Typically 71 mV at 100mA

Over Current Limitation

–40°C to 125°C Operating Junction Temperature Range

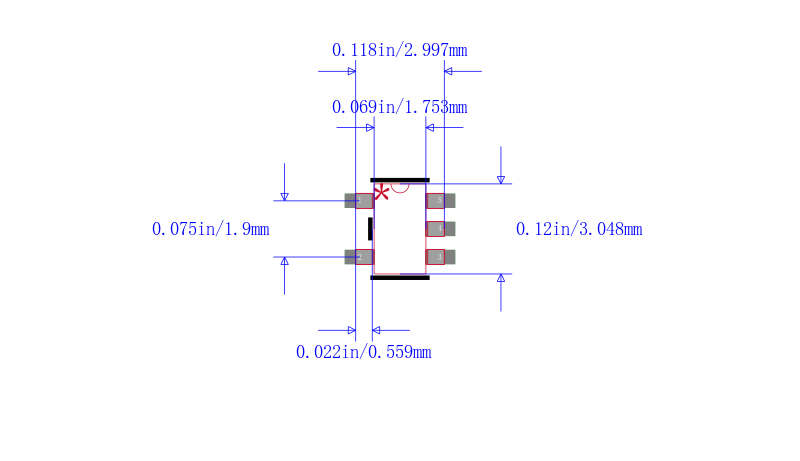

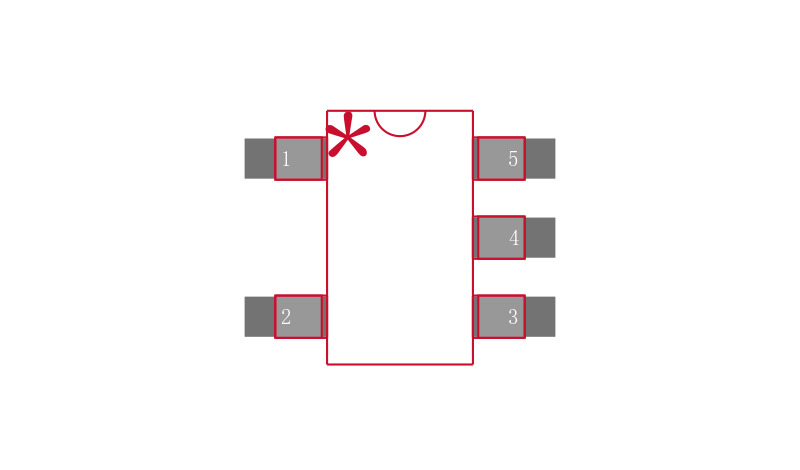

5-Pin SOT-23 DBV Package
