200mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 5-DSBGA
立创商城:
正 Vin=6.5V Vout=2.8V 200mA
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
得捷:
IC REG LINEAR 2.8V 200MA 5DSBGA
贸泽:
低压差稳压器 200mA High PSRR LDO
艾睿:
Use this LDO TPS79928YZUT linear regulator from Texas Instruments to vary your voltage levels to your desired level. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.1@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. It only needs a voltage of at least 2.7 V while not exceeding 6.5 V to effectively power your circuit. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.175@200mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed2.8V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R
输出接口数 1
输入电压DC 6.50V max
输出电压 2.8 V
输出电流 200 mA
耗散功率 0.53 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 0.1V @200mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 5

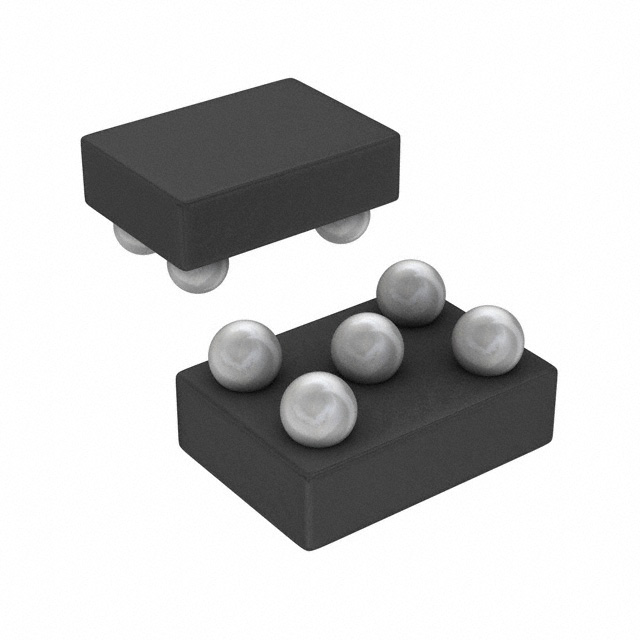

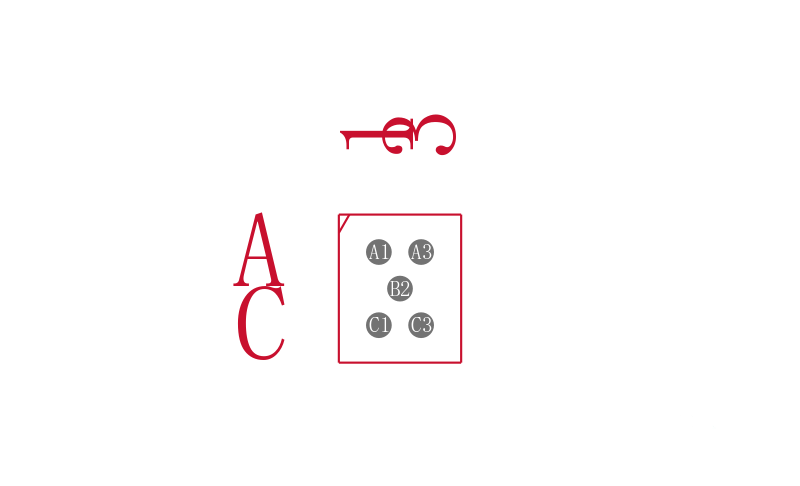

封装 DSBGA-5
长度 1.57 mm
宽度 1.2 mm
高度 0.55 mm
封装 DSBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79928YZUT TI 德州仪器 | 当前型号 | 当前型号 |
TPS79928YZUR 德州仪器 | 类似代替 | TPS79928YZUT和TPS79928YZUR的区别 |
