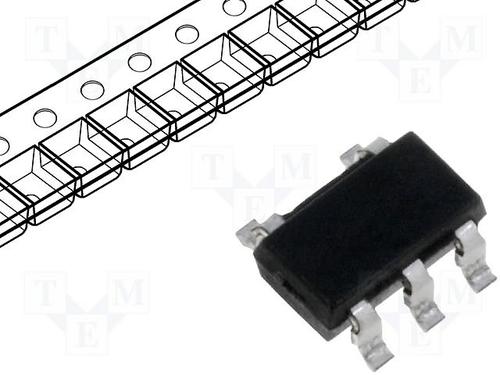

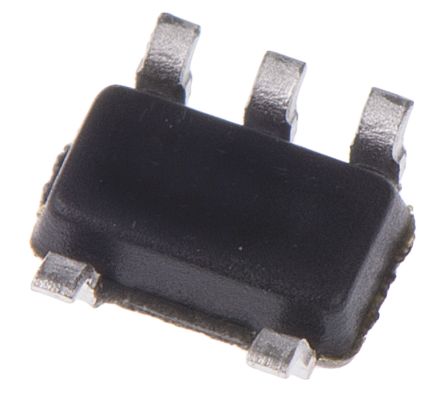

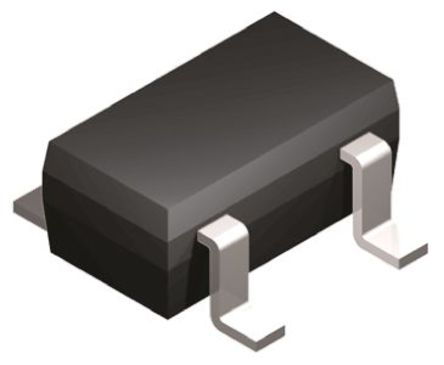

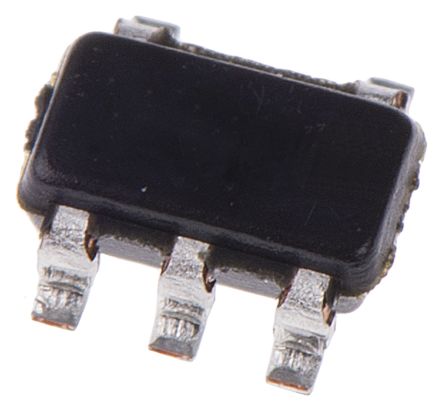

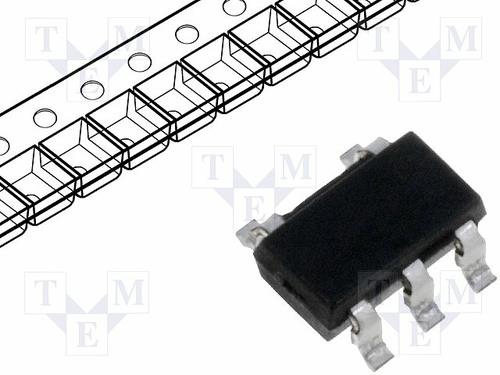

TPS73125DBVT

TEXAS INSTRUMENTS  TPS73125DBVT  固定电压稳压器, LDO, 1.7V至5.5V, 30mV压差, 2.5V输出, 150mA输出, SOT-23-5

LDO（低压降）线性稳压器，150mA，2.0V 至 2.9V，Texas Instruments

得捷:
IC REG LINEAR 2.5V 150MA SOT23-5

欧时:
### LDO（低压降）线性稳压器，150mA，2.0V 至 2.9V，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

立创商城:
正 Vin=5.5V Vout=2.5V 150mA 58dB

德州仪器TI:
150-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable

贸泽:
LDO Voltage Regulators 150mA NMOS LDO

e络盟:
TEXAS INSTRUMENTS  TPS73125DBVT  固定电压稳压器, LDO, 1.7V至5.5V, 30mV压差, 2.5V输出, 150mA输出, SOT-23-5

艾睿:
Keep calm and stay stable by implementing this LDO TPS73125DBVT linear regulator developed by Texas Instruments. This device has a maximum power dissipation of 560 mW. Its typical dropout voltage at current is 0.03@150mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 1.7 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp is needed for a programmable DC power supply. Its maximum power dissipation is 560 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.1@150mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 2.5V 0.15A 5-Pin SOT-23 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed2.5V, Cap free, Low Noise, Fast Transient Response LDO Regulator Pos 2.5V 0.15A 5-Pin SOT-23 T/R

TME:
Voltage regulator; LDO, fixed; 2.5V; 0.15A; SOT23-5; SMD

Verical:
LDO Regulator Pos 2.5V 0.15A 5-Pin SOT-23 T/R

Newark:
# TEXAS INSTRUMENTS  TPS73125DBVT  Fixed LDO Voltage Regulator, 1.7V to 5.5V, 30mV Dropout, 2.5Vout, 150mAout, SOT-23-5

DeviceMart:
IC REG LDO 2.5V .15A SOT23-5
