200mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 6-WSON(2x2)
立创商城:

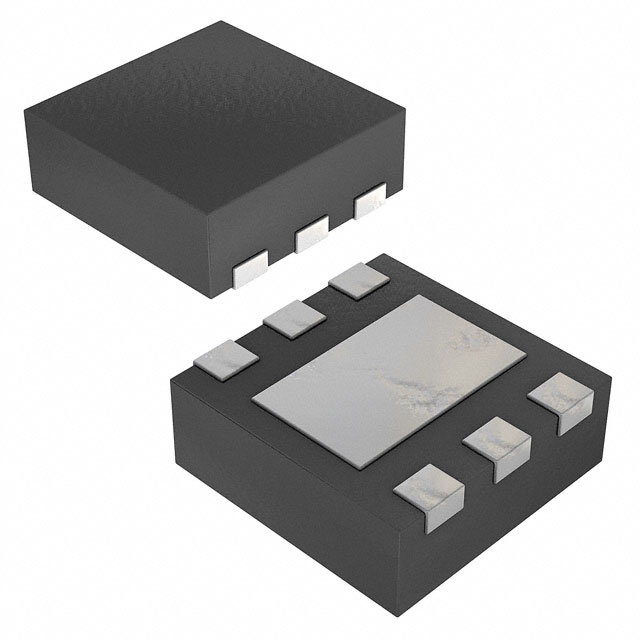

TPS799195DRVT
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
得捷:
IC REG LINEAR 1.95V 200MA 6WSON
贸泽:
低压差稳压器 200mA Fixed1.3V
艾睿:
This LDO TPS799195DRVT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. By only needing an input voltage of 2.7 V with a maximum of 6.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.95 V, this is power management at its best. Using a load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.95V 0.2A 6-Pin WSON EP T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed1.95V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.95V 0.2A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 1.95V 0.2A 6-Pin WSON EP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.95V 200mA 6-SON 2x2
输出接口数 1
输出电压 1.95 V
输出电流 200 mA
耗散功率 1540 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 100mV @0.2A
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1.54 W
精度 2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 6
封装 WDFN-6
长度 2 mm
宽度 2 mm
高度 0.75 mm
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS799195DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS799195DRVR 德州仪器 | 完全替代 | TPS799195DRVT和TPS799195DRVR的区别 |
TPS799195DRVRG4 德州仪器 | 类似代替 | TPS799195DRVT和TPS799195DRVRG4的区别 |
