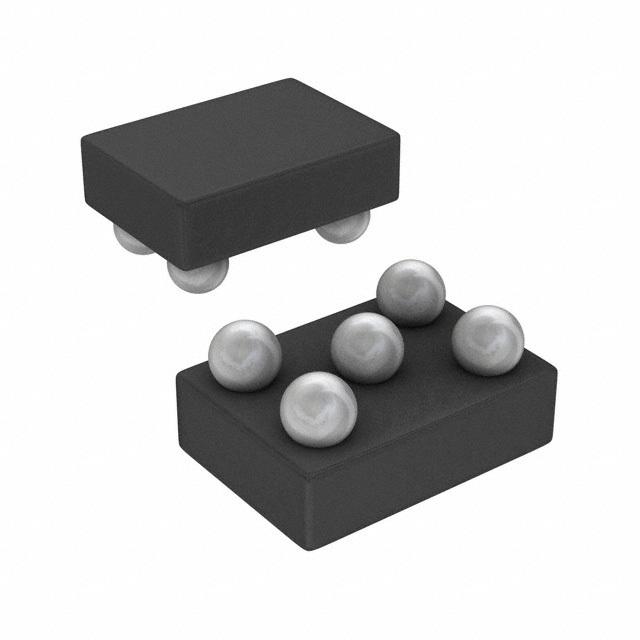

TEXAS INSTRUMENTS TPS79901YZUT 电压稳压器, LDO, 可调, 2.7V至6.5V输入, 90mV压差, 1.2V至6.5V/0.2A输出, DSBGA-5
PMIC - 稳压器 - 线性 正 可调式 1 输出 200mA 5-DSBGA(1x1.37)
得捷:
IC REG LIN POS ADJ 200MA 5DSBGA
立创商城:
TPS79901YZUT
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with low-noise & enable
贸泽:
低压差稳压器 200mA High PSRR LDO
e络盟:
TEXAS INSTRUMENTS TPS79901YZUT 电压稳压器, LDO, 可调, 2.7V至6.5V输入, 90mV压差, 1.2V至6.5V/0.2A输出, DSBGA-5
艾睿:
Keep the energy stable for every system by using this LDO TPS79901YZUT linear regulator by Texas Instruments. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. With a small input voltage of 2.7 V and a max of 6.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.2 to 6.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1.2V to 6.5V 0.2A 5-Pin DSBGA T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Adj.1.193 to 6.5V, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.2V to 6.5V 0.2A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 1.2V to 6.5V 0.2A 5-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS TPS79901YZUT LDO Voltage Regulator, Adjustable, 2.7V-6.5V in, 90mV drop., 1.2V-6.5V/200mA out, DSBGA-5
DeviceMart:
IC REG LDO ADJ .2A 5-DSBGA
输出接口数 1
输入电压DC 6.50V max
输出电压 1.2V ~ 6.5V
输出电流 200 mA
供电电流 60 µA
针脚数 5
耗散功率 530 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 90 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Max 6.5 V
输出电压Min 1.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 5

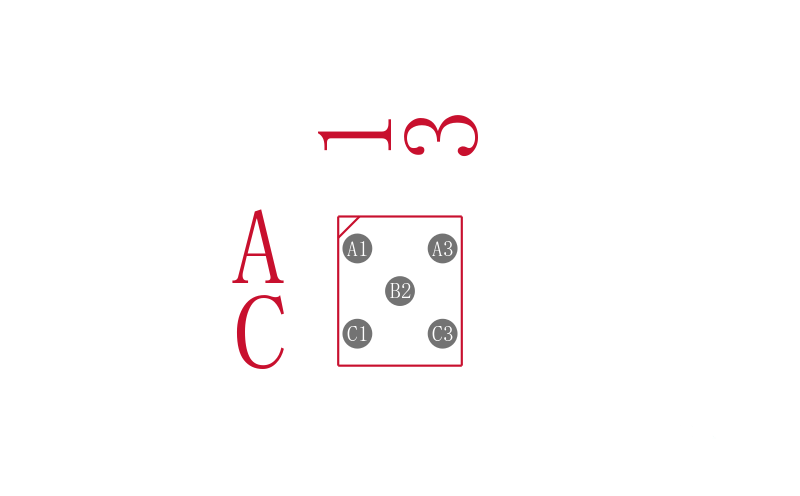

封装 UFBGA-5
长度 1.57 mm
宽度 1.2 mm
高度 0.55 mm
封装 UFBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79901YZUT TI 德州仪器 | 当前型号 | 当前型号 |
TPS79901YZUR 德州仪器 | 类似代替 | TPS79901YZUT和TPS79901YZUR的区别 |
TPS79901DRVR 德州仪器 | 功能相似 | TPS79901YZUT和TPS79901DRVR的区别 |
TPS79901DRVT 德州仪器 | 功能相似 | TPS79901YZUT和TPS79901DRVT的区别 |
