TAS5162DKD

2 * 210瓦的立体声数字放大器功率级 2*210 Watt STEREO DIGITAL AMPLIFIER POWER STAGE

DESCRIPON

The TAS5162 is a high performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5162 is capable of driving a 6-Ω bridge-tied load BTL at up to 210 W per channel at THD = 10%, low integrated noise at the output, low THD+N performance without clipping, and low idle power dissipation.

FEATURES

• 2×160 W at 10% THD+N Into 8-Ω BTL

• 2×210 W at 10% THD+N Into 6-Ω BTL

• 1×300 W at 10% THD+N Into 4-Ω PBTL

• >110 dB SNR A-Weighted, TAS5518 Modulator

• <0.09% THD+N at 1 W

• Two Thermally Enhanced Package Options:

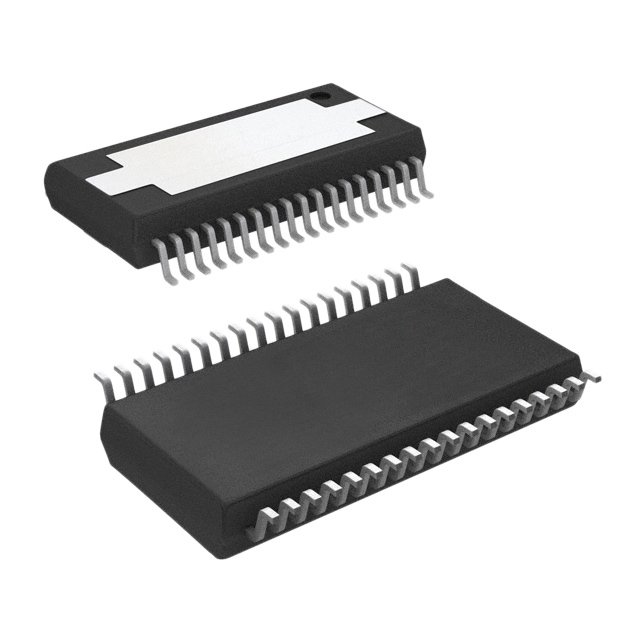

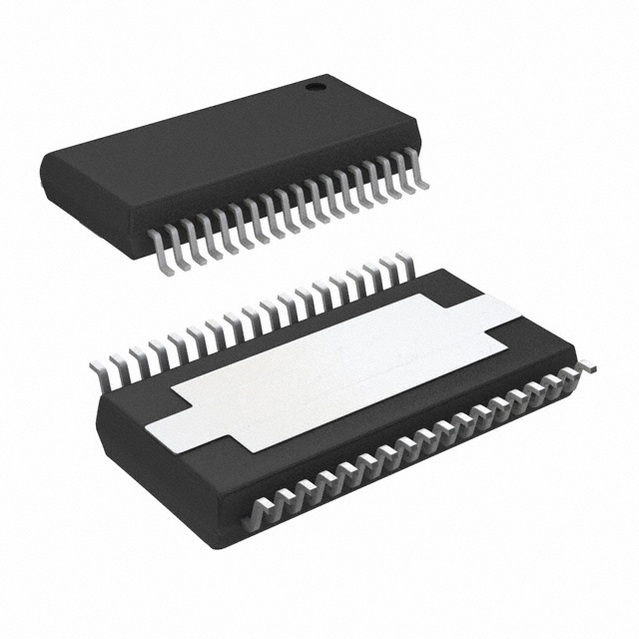

– DKD 36-pin PSOP3

– DDV 44-pin HTSSOP

• High-Efficiency Power Stage >90% With 80-mΩ Output MOSFETs

• Power-On Reset for Protection on Power Up Without Any Power-Supply Sequencing

• Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, Short Circuit

• Error Reporting

• EMI Compliant When Used With Recommended System Design

• Intelligent Gate Drive

• Mid-Z Ramp Compatible for reduced "pop noise"

APPLICATIONS

• Mini/Micro Audio System

• DVD Receiver

• Home Theater
