TPA6203A1DRBR

1.25 -W单声道全差分音频功率放大器 1.25-W MONO FULLY DIFFERENTIAL AUDIO POWER AMPLIFIER

DESCRIPON

The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm 2 ZQV package option total printed-circuit board PCB area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6203A1 is available in the space-saving 2 mm x 2 mm MicroStar Junior™ BGA package, and the space saving 3 mm x 3 mm QFN DRB package.

FEATURES

• 1.25 W Into 8 Ω From a 5-V Supply at THD = 1% Typical

• Low Supply Current: 1.7 mA Typical

• Shutdown Control < 10 µA

• Only Five External Components

– Improved PSRR 90 dB and Wide Supply Voltage 2.5 V to 5.5 V for Direct Battery Operation

– Fully Differential Design Reduces RF Rectification

– Improved CMRR Eliminates Two Input Coupling Capacitors

– CBYPASS Is Optional Due to Fully Differential Design and High PSRR

• Avaliable in a 2 mm x 2 mm MicroStar Junior ™ BGA Package GQV, ZQV

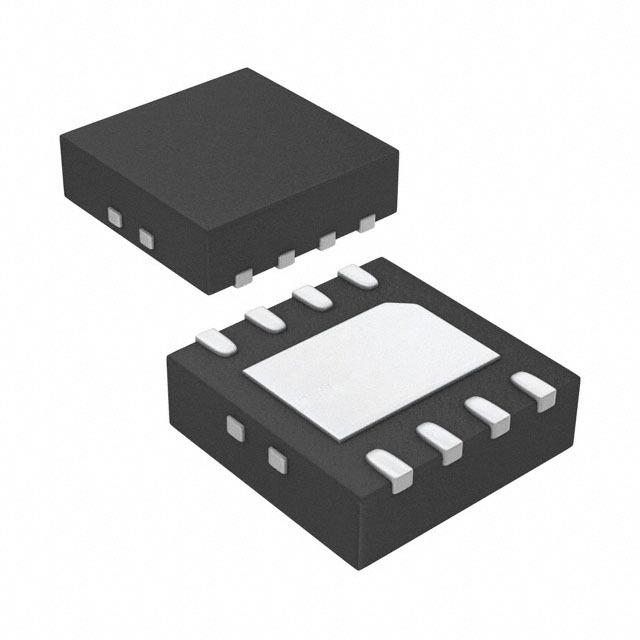

• Available in 3 mm x 3 mm QFN Package DRB

• Available in an 8-Pin PowerPAD™ MSOP DGN
