3.1W,单声道,全差动AB类音频放大器
The TPA6211A1 is a 3.1-W mono fully-differential amplifier designed to drive a speaker with at least 3-Ω impedance while consuming only 20 mm2 total printed-circuit board PCB area in most applications. The device operates from 2.5 V to 5.5 V, drawing only 4 mA of quiescent supply current. The TPA6211A1 is available in the space-saving 3-mm × 3-mm SON DRB and the 8-pin MSOP-PowerPAD DGN packages.
Features like –80 dB supply voltage rejection from 20 Hz to 2 kHz, improved RF rectification immunity, small PCB area, and a fast startup with minimal pop makes the TPA6211A1 ideal for PDA and smart phone applications.
电源电压DC 5.50 V
电路数 1
通道数 1
针脚数 8
耗散功率 2.13 W
静态电流 4.00 mA
输出功率 3.1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2130 mW
电源电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8

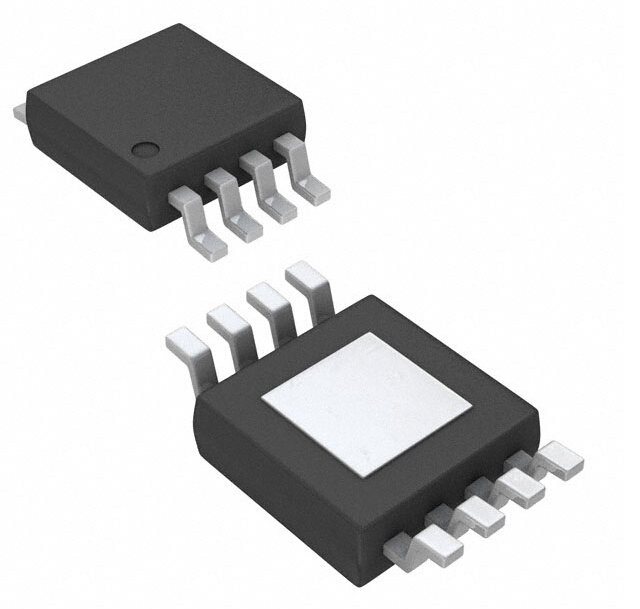

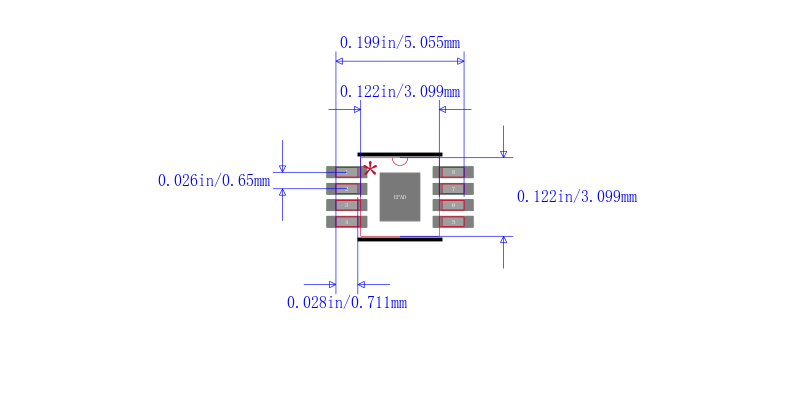

封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPA6211A1DGNR TI 德州仪器 | 当前型号 | 当前型号 |
TPA6211A1DGN 德州仪器 | 完全替代 | TPA6211A1DGNR和TPA6211A1DGN的区别 |
TPA6211A1DRBR 德州仪器 | 类似代替 | TPA6211A1DGNR和TPA6211A1DRBR的区别 |
TPA6211A1DGNG4 德州仪器 | 类似代替 | TPA6211A1DGNR和TPA6211A1DGNG4的区别 |
