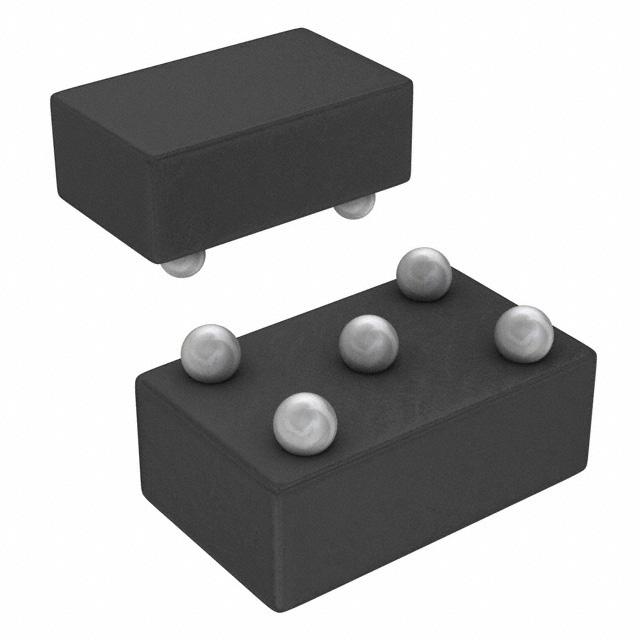

TPS79328YZQR

具有使能功能的 200mA、低压降稳压器 5-DSBGA -40 to 125

PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 5-DSBGA

立创商城:
TPS79328YZQR

德州仪器TI:
200-mA, low-dropout voltage regulator with enable

得捷:
IC REG LINEAR 2.8V 200MA 5DSBGA

艾睿:
This LDO TPS79328YZQR linear regulator developed by Texas Instruments keeps the power stable! Its typical dropout voltage at current is 0.12@200mA V. This device has a maximum power dissipation of 530 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 5.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. At a load regulation of 5mVTyp and line regulation of 0.05%/VTyp a constant current can be produced at the output of your circuit. Its maximum power dissipation is 530 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.2@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.

安富利:
LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed2.8V, High PSRR, Low Noise LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R

Verical:
LDO Regulator Pos 2.8V 0.2A 5-Pin DSBGA T/R

Win Source:
ULTRALOW-NOISE, HIGH PSRR, FAST RF 200mA LOW-DROPOUT LINEAR
