具有可变增益和短路自动恢复功能的 2.5W 单声道 D 类音频放大器 TPA2036 9-DSBGA -40 to 85
The TPA2036D1 is a 2.5-W high efficiency filter-free class-D audio power amplifier class-D amp in a 1,45 mm × 1,45 mm wafer chip scale package WCSP that requires only three external components.
Features such as 88% efficiency, 75-dB PSRR, improved RF immunity, and 8 mm2 total PCB area make TPA2036D1 ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes TPA2036D1 ideal for portable applications.
In cellular handsets, TPA2036D1 is capable of driving the earpiece, speaker phone, and melody ringer. TPA2036D1 allows independent gain while summing signals from separate sources, and has a low 36 µVRMS noise floor, A-weighted.
通道数 1
耗散功率 0.975 W
共模抑制比 49 dB
输出功率 2.5 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 975 mW
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 9

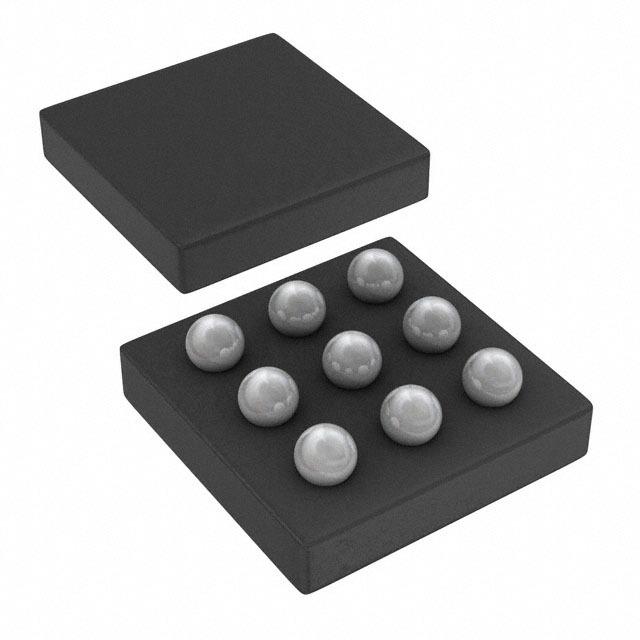

封装 DSBGA-9
宽度 1.8 mm
封装 DSBGA-9
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPA2036D1YZFR TI 德州仪器 | 当前型号 | 当前型号 |
TPA2036D1YZFT 德州仪器 | 完全替代 | TPA2036D1YZFR和TPA2036D1YZFT的区别 |
LM4923MM/NOPB 德州仪器 | 功能相似 | TPA2036D1YZFR和LM4923MM/NOPB的区别 |
LM4941SD/NOPB 德州仪器 | 功能相似 | TPA2036D1YZFR和LM4941SD/NOPB的区别 |
