TC2117-2.5VDBTR

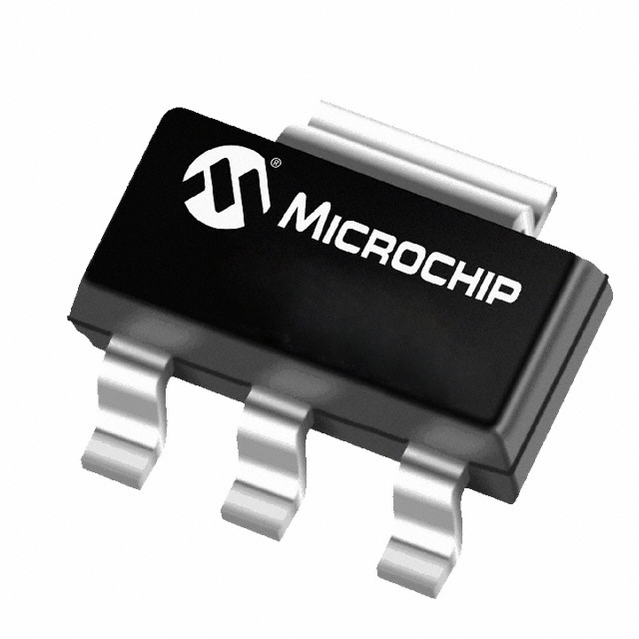

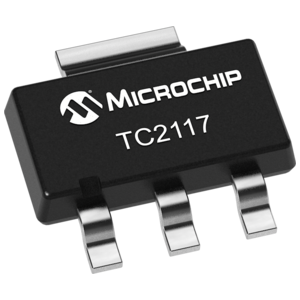

TC2117 系列 800 mA 2.5 V 固定输出 表面贴装 LDO 稳压器 - SOT-223

General Description

The TC2117 is a fixed, high accuracy typically ±0.5% CMOS low dropout regulator. Designed specifically for battery operated systems, the TC2117’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 µA at full load 20 to 60 times lower than in bipolar regulators.

TC2117 key features include ultra low noise, very low dropout voltage typically 450 mV at full load, and fast response to step changes in load. The TC2117 incorporates both overtemperature and overcurrent protection. The TC2117 is stable with an output capacitor of only 1µF and has a maximum output current of 800 mA. This device is available in 3-Pin SOT-223, and 3-Pin DDPAK packages.

Features

• Fixed Output Voltages: 1.8V, 2.5V, 3.0V, 3.3V

• Very Low Dropout Voltage

• Rated 800 mA Output Current

• High Output Voltage Accuracy

• Standard or Custom Output Voltages

• Overcurrent and Overtemperature Protection

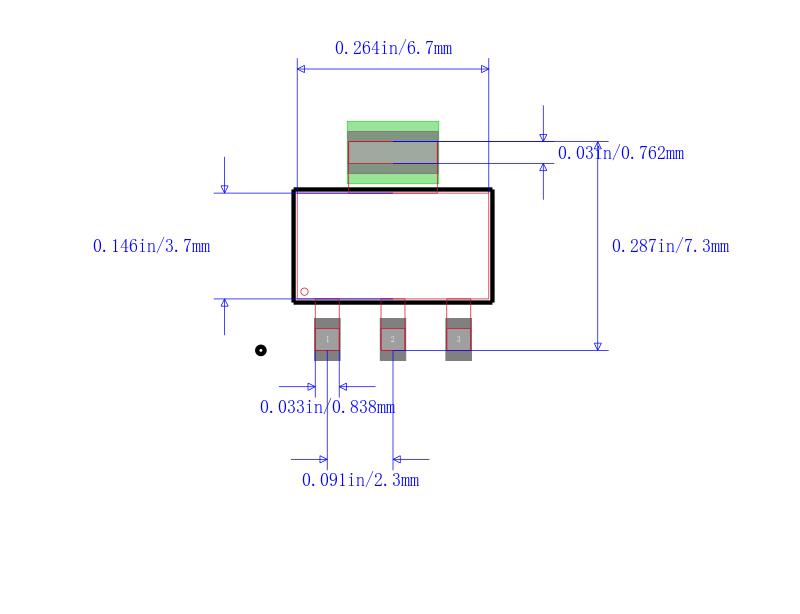

• Space Saving SOT-223 Package

Applications

• 5V to 3.3V Linear Regulator

• Portable Computers

• Instrumentation

• Battery Operated Systems

• Linear Post-Regulator for SMPS

• Core Voltage Supply for FPGAs, PLDs, CPUs, DSPs
