无电容, NMOS , 250毫安低压差稳压器具有反向电流保护 Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection
PMIC - 稳压器 - 线性 正 固定 1 输出 250mA SOT-23-5
得捷:
IC REG LINEAR 3.3V 250MA SOT23-5
德州仪器TI:
250-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable
e络盟:
固定LDO稳压器, 1.7 V至5.5 V输入, 180 mV压降, 3.3 V/250 mA输出, SOT-23-5
艾睿:
This LDO TPS73233DBVR linear regulator developed by Texas Instruments keeps the power stable! Its typical dropout voltage at current is 0.04@250mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. It only needs a voltage of at least 1.7 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.15@250mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.25A 5-Pin SOT-23 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 250mA, Fixed3.3V, Fast Transient Response, Reverse Current Protection LDO Regulator Pos 3.3V 0.25A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 3.3V 0.25A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS73233DBVR Fixed LDO Voltage Regulator, 1.7V to 5.5V, 40mV Dropout, 3.3Vout, 250mAout, SOT-23-5
Win Source:
IC REG LDO 3.3V 0.25A SOT23-5
输出接口数 1
输出电压 3.3 V
输出电流 250 mA
供电电流 550µA ~ 950µA
针脚数 5
耗散功率 560 W
静态电流 0.4 mA
输出电容类型 Ceramic
跌落电压 0.04V @250mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 3.3 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5

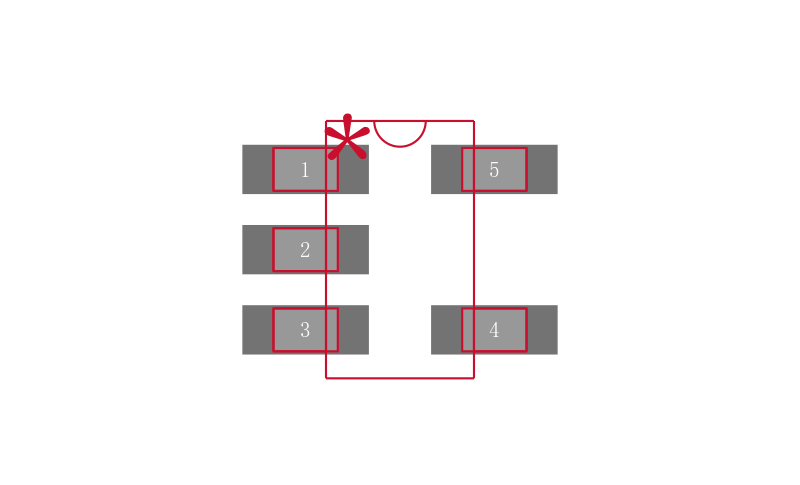

封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73233DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73233DBVT 德州仪器 | 类似代替 | TPS73233DBVR和TPS73233DBVT的区别 |
TPS73233DBVRG4 德州仪器 | 类似代替 | TPS73233DBVR和TPS73233DBVRG4的区别 |
