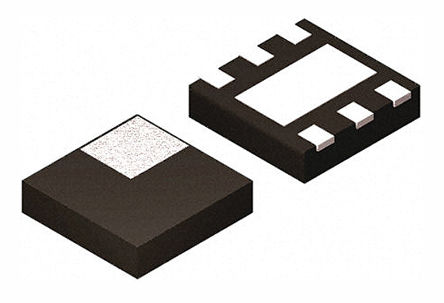

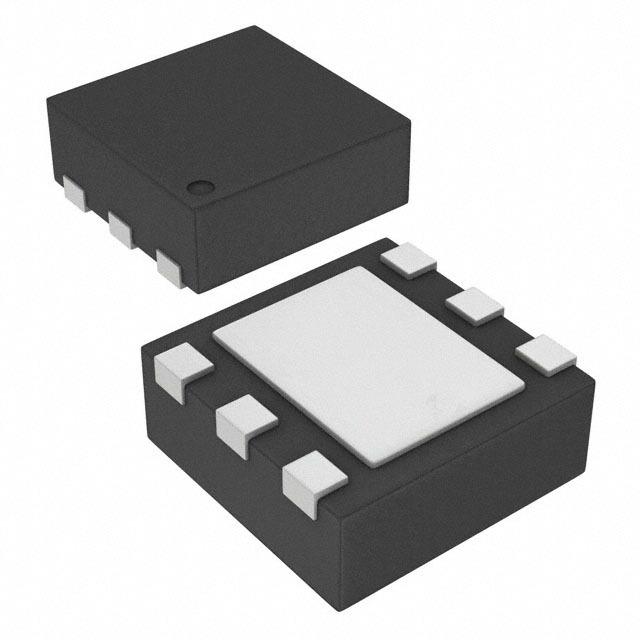

TPS78001DRVT

TEXAS INSTRUMENTS  TPS78001DRVT  芯片, 稳压器, LDO, 150mA, 可调, 6-SON

可调 LDO（低压降）线性电压稳压器，高达 250mA，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LIN POS ADJ 150MA 6WSON

欧时:
### 可调 LDO（低压降）线性电压稳压器，高达 250mA，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

立创商城:
正 Vin=5.5V Vout=1.22V~5.25V 150mA 40dB

德州仪器TI:
150-mA, nano-IQ, low-dropout voltage regulator with pin-selectable, dual-level output voltage

e络盟:
# TEXAS INSTRUMENTS  TPS78001DRVT  芯片, 稳压器, LDO, 150mA, 可调, 6-SON

艾睿:
Control the voltage level of your circuit with this LDO TPS78001DRVT linear regulator from Texas Instruments. This device has a maximum power dissipation of 1540 mW. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.2@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.2 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 1.22 to 5.25 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 2% and line regulation of 1%. Its maximum power dissipation is 1540 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.25@150mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 1.22V to 5.25V 0.15A 6-Pin WSON EP T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Adj. 1.22V to 5.25V, 500nA Quiescent Current LDO Regulator Pos 1.22V to 5.25V 0.15A 6-Pin WSON EP T/R

Verical:
LDO Regulator Pos 1.22V to 5.25V 0.15A 6-Pin WSON EP T/R

DeviceMart:
IC REG LDO ADJ .15A 6SON

Win Source:
IC REG LIN POS ADJ 150MA 6WSON / Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 6-WSON 2x2
