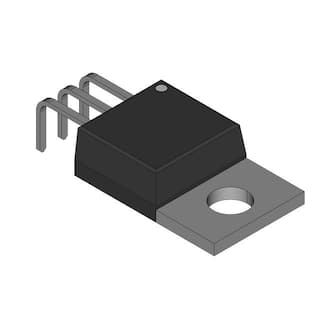

TLV1117IKCS

可调，固定低压差稳压器 ADJUSTABLE AND FIXED LOW-DROPOUT VOLTAGE REGULATOR

PMIC - 稳压器 - 线性 正 可调式 1 输出 800mA TO-220-3

得捷:
IC REG LIN POS ADJ 800MA TO220-3

立创商城:
TLV1117IKCS

德州仪器TI:
800-mA, 15-V, linear voltage regulator

贸泽:
低压差稳压器 Standard LDO Voltage

艾睿:
This LDO TLV1117IKCS linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. This voltage regulation device&s;s single output can produce a current up to 0.8 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 15 V. With an adjustable output, this is power management at its best. By operating at a load regulation of 0.2%Typ and line regulation of 0.035%Typ you can provide a constant voltage at your output. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 1.3@100mA|1.35@500mA|1.4@800mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 0.8A 3-Pin3+Tab TO-220 Tube

TME:
Voltage regulator; LDO, adjustable; 1.25÷15V; 0.8A; TO220-3; THT

Verical:
LDO Regulator Pos 1.25V to 13.7V 0.8A 3-Pin3+Tab TO-220 Tube

Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output Adjustable 800mA TO-220-3
