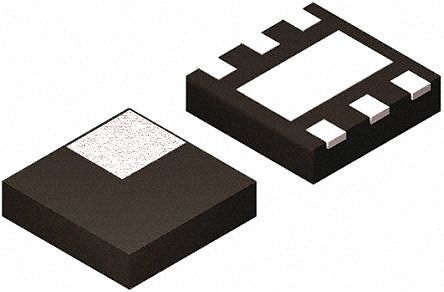

TEXAS INSTRUMENTS TPS62560DRVT 直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 850mV-5.5V输出, 0.6A输出, SON-6
降压直流/直流转换器(集成开关)最大输入高达 6V,TPS 系列,Texas Instruments
### 直流/直流开关调节器转换器(集成开关),Texas Instruments
Texas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
得捷:
IC REG BUCK ADJ 600MA 6SON
立创商城:
降压型 Vin=2.5V~5.5V Vout=850mV~5.5V 600mA
德州仪器TI:
2.25MHz 600mA Step-Down Converter in 2x2mm SON Package
欧时:
Texas Instruments TPS62560DRVT 降压 开关稳压器, 2.5 → 5.5 V输入, 600mA最大输出
e络盟:
TEXAS INSTRUMENTS TPS62560DRVT 直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 850mV-5.5V输出, 0.6A输出, SON-6
艾睿:
Adjust the voltage level of your devices with this synchronous step down TPS62560DRVT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.6 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.85 to 5.5 V, this is power management at its best. By operating at a load regulation of -1%/ATyp you can provide a constant voltage at your output. It has a switching frequency of 2250Typ kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Down 2.5V to 5.5V 6-Pin WSON EP T/R
Chip1Stop:
Step-Down Regulator 2.25MHz 600mA Step-Down Converter in 2x2mm SON Package Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.85V to 5.5V 0.6A 6-Pin WSON EP T/R
Verical:
Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.85V to 5.5V 0.6A 6-Pin WSON EP T/R
力源芯城:
2.25MHz 600mA 降压转换器
DeviceMart:
IC REG BUCK SYNC ADJ 0.6A 6SON
Win Source:
Buck Switching Regulator IC Positive Adjustable 0.85V 1 Output 600mA 6-WDFN Exposed Pad
输出接口数 1
输出电压 0.85V ~ 5.5V
输出电流 600 mA
针脚数 6
静态电流 15.0 µA
调节输出数 1
输出功率 1.3 W
开关频率 2.25 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5.5 V
输出电压Min 850 mV
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5 V
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 SON-6
长度 3.05 mm
宽度 1.75 mm
高度 1 mm
封装 SON-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62560DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62560DRVR 德州仪器 | 类似代替 | TPS62560DRVT和TPS62560DRVR的区别 |
TPS62560DRVTG4 德州仪器 | 类似代替 | TPS62560DRVT和TPS62560DRVTG4的区别 |
TPS62560DRVRG4 德州仪器 | 类似代替 | TPS62560DRVT和TPS62560DRVRG4的区别 |
