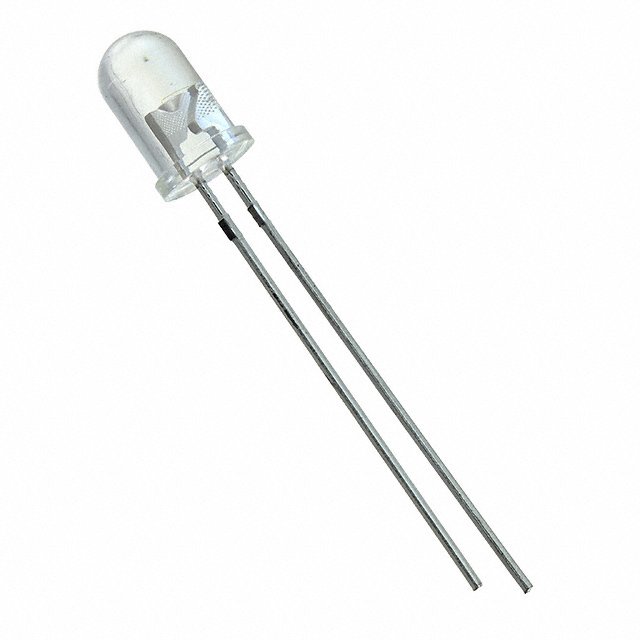

Vishay TSHG Series IR Emitting DiodesThe TSHG family, from Vishay Semiconductor, are through-hole Infrared IR LEDs. They are in standard T-1 3/4 5mm packages. The TSHG have a clear, untinted plastic package. They use double hetero DH technology and offer a high radiant power and high speed output. Suitable applications for the TSHG family of IR emitting diodes include; CMOS camera, high speed IR data transmissino and smoke-automatic fire detectors. Features of the TSHG IR LEDs: T-1 3/4 5mm package Peak wavelength: 830nm or 850nm Some with stand-off leads High reliability High radiant power and intensity Low forward voltage ### 红外线 IR 发射器，Vishay
Infrared IR Emitter 850nm 1.5V 100mA 140mW/sr @ 100mA 20° Radial
得捷:
EMITTER IR 850NM 100MA RADIAL
艾睿:
LED IrLED 850nm 2-Pin T-1 3/4 Bulk
安富利:
LED IrLED 850nm 2-Pin T-1 3/4 Bulk
Newark:
# VISHAY TSHG6210 Infrared Emitter, High Speed, 10 °, T-1 3/4 5mm, 100 mA, 1.8 V, 20 ns, 13 ns
AMEYA360:
Vishay 20° 红外线 LED, 850nm, 2针 通孔安装 T-1 3/4 5mm, TSHG6210
上升/下降时间 0.02 µs
针脚数 2
正向电压 1.5 V
波长 850 nm
视角 20°
峰值波长 850 nm
耗散功率 180 mW
上升时间 20 ns
测试电流 100 mA
正向电流 100 mA
正向电压Max 1.8 V
正向电流Max 100 mA
下降时间 13 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 180 mW
安装方式 Through Hole
引脚数 2
封装 T-1
高度 8.7 mm
封装 T-1
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
