LDO(低压降)线性电压调节器,300mA、350mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,300mA、350mA,Texas Instruments
得捷:
IC REG LINEAR 1.2V 350MA 6WSON
立创商城:
TPS72012DRVT
德州仪器TI:
350-mA, low-VIN 1.1-V, high-PSRR, low-IQ, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性电压调节器,300mA、350mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
LDO Voltage Regulators Sgl Output LDO 350mA Fixed Bias Pin
e络盟:
固定电压稳压器, LDO, 1.1V至4.5V, 110mV压差, 1.2V输出, 350mA输出, SON-6
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TPS72012DRVT linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.11@350mA V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 1580 mW. This voltage regulation device&s;s single output can produce a current up to 0.35 A. Use this part at voltages between 1.1 V and 4.5 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. At a load regulation of -15uV/mATyp and line regulation of 16uV/VTyp a constant current can be produced at the output of your circuit. Its maximum power dissipation is 1580 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.2@350mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1.2V 0.35A 6-Pin WSON EP T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 350mA, Fixed 1.2V, Bias Pin LDO Regulator Pos 1.2V 0.35A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 1.2V 0.35A 6-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS72012DRVT Fixed LDO Voltage Regulator, 1.1V to 4.5V, 110mV Dropout, 1.2Vout, 350mAout, SON-6
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 350mA 6-SON 2x2
额定功率 1.58 W
输出接口数 1
输出电压 1.2 V
输出电流 350 mA
针脚数 6
耗散功率 1.58 W
静态电流 38 µA
输出电容类型 Ceramic
跌落电压 110 mV
调节输出数 1
输入电压Max 4.5 V
输入电压Min 1.1 V
输出电流Max 350 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1580 mW
精度 2 %
输入电压 ≤4.5 V
安装方式 Surface Mount
引脚数 6

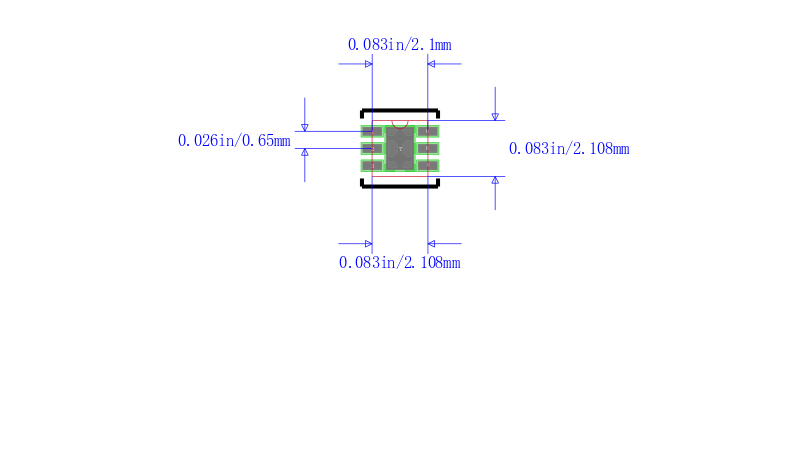

封装 WSON-6
长度 2.1 mm
宽度 2.1 mm
高度 0.75 mm
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS72012DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS72012DRVR 德州仪器 | 类似代替 | TPS72012DRVT和TPS72012DRVR的区别 |
TPS72012YZUT 德州仪器 | 功能相似 | TPS72012DRVT和TPS72012YZUT的区别 |
TPS72012YZUR 德州仪器 | 功能相似 | TPS72012DRVT和TPS72012YZUR的区别 |
