TEXAS INSTRUMENTS TPS3801I50DCKR. 芯片, 微处理器监控器/电压探测器
The is an ultra-small supply voltage Supervisor Circuit with active-low push-pull output and manual reset. The supervisory circuit monitors the supply voltages to provide circuit initialization and timing supervision, primarily for DSPs and other processor-based systems. This device asserts a push-pull /RESET signal when the SENSE adjustable version or VDD fixed version drops below a preset threshold. The /RESET output remains asserted for the factory programmed delay time after the SENSE or VDD return above its threshold.
电源电压DC 2.00V min
供电电流 0.025 mA
针脚数 5
静态电流 9.00 µA
阈值电压 4.55 V
复位电压Min 4.45 V
复位电压Max 4.65 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 5

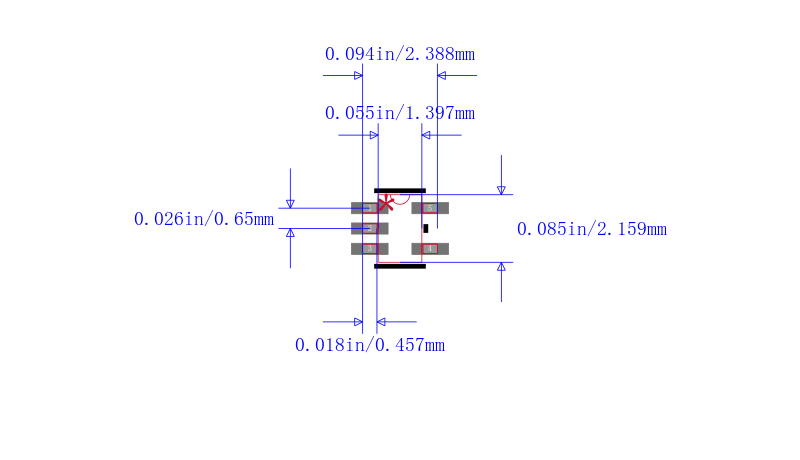

封装 SC-70-5
封装 SC-70-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计算机和计算机周边, 工业, 传感与仪器, 无线, 便携式器材, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS3801I50DCKR TI 德州仪器 | 当前型号 | 当前型号 |
TPS3801I50DCKRG4 德州仪器 | 完全替代 | TPS3801I50DCKR和TPS3801I50DCKRG4的区别 |
