蘸径向电容TAP系列 Dipped Radial Capacitors TAP Series

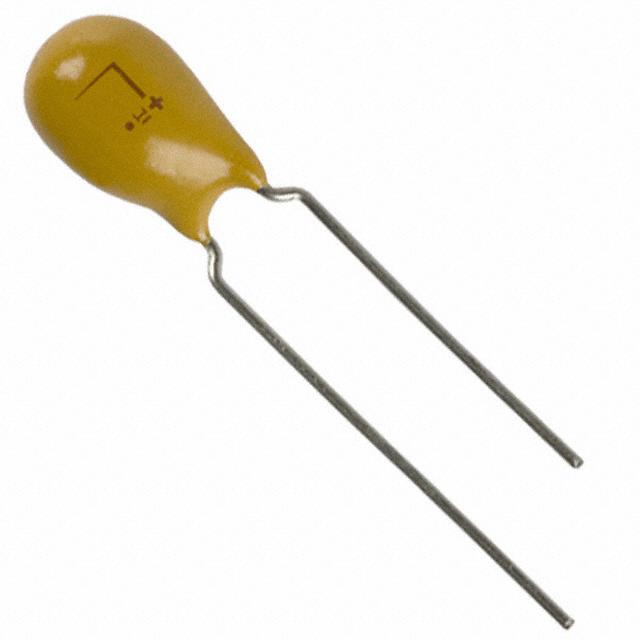

If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this solid tantalum capacitor from . It can withstand a voltage of 25 VDC. Users like its outside bend wire form. This part has a pitch of 5 mm. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 2 μA. The TAP106M025CRW solid capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 10uF. This product is 10.5Max mm tall with a diameter of 5.5Max mm.
额定电压DC 25 V
电容 10 µF
等效串联电阻ESR 2.5 Ω
容差 ±20 %
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 25 V
安装方式 Through Hole
封装 Radial
引脚间距 5.00 mm
长度 10.5 mm
宽度 5.5 mm
高度 10.5 mm
直径 Φ5.50mm
封装 Radial
引脚间距 5.00 mm
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命(小时) 1000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAP106M025CRW AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP106M025DTW 艾维克斯 | 完全替代 | TAP106M025CRW和TAP106M025DTW的区别 |
TAP106M025DTS 艾维克斯 | 完全替代 | TAP106M025CRW和TAP106M025DTS的区别 |
TAP106M025GSB 艾维克斯 | 功能相似 | TAP106M025CRW和TAP106M025GSB的区别 |
