TPS3510PE4

TEXAS INSTRUMENTS  TPS3510PE4  芯片, 3通道监控器

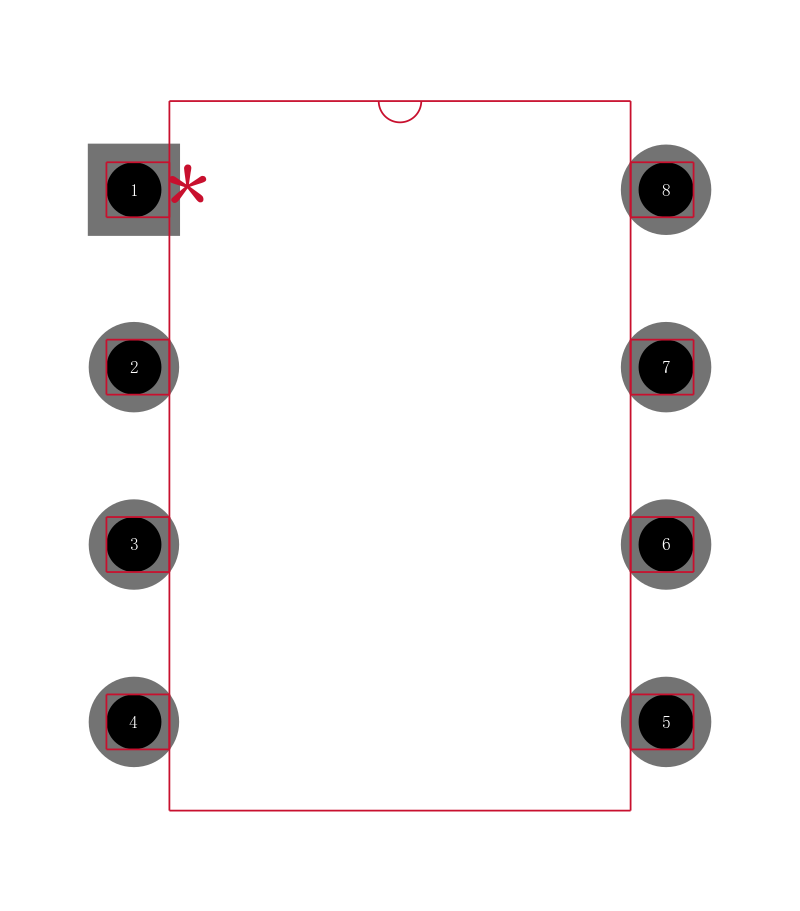

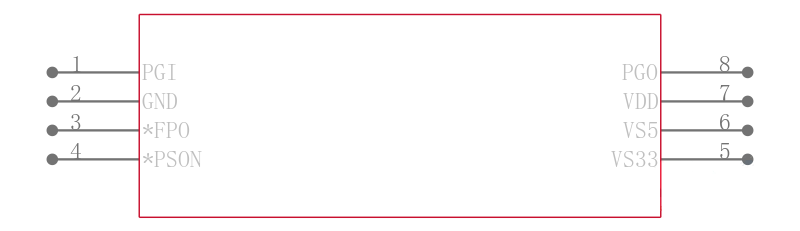

description

The TPS3510/1 is designed to minimize external components of personal-computer switching power supply systems. It provides protection circuits, power good indicator, fault protection output FPO and PSON control.

Overvoltage protection OVP monitors 3.3 V, 5 V, and 12 V 12-V signal detects via VDD pin. Undervoltage protection UVP monitors 3.3 V and 5 V. When an OV or UV condition is detected, the power good output PGO is set to low and FPO is latched high. PSON from low to high resets the protection latch. UVP function is enabled 75 ms after PSON is set low and debounced. Furthermore, there is a 2.3-ms delay and an additional 38-ms debounce at turnoff. There is no delay during turnon.

Power good feature monitors PGI, 3.3 V and 5 V and issues a power good signal when the output is ready.

The TPS3510/1 is characterized for operation from –40°C to 85°C.

• Overvoltage Protection and Lockout for 12 V, 5 V, 3.3 V

• Undervoltage Protection and Lockout for 5 V and 3.3 V

• Fault Protection Output With Open-Drain Output Stage

• Open-Drain Power Good Output Signal for Power Good Input, 3.3 V and 5 V

• Power Good Delay; 300-ms TPS3510, 150-ms TPS3511

• 75-ms Delay for 5-V and 3.3-V Power Supply Short-Circuit Turnon Protection

• 2.3-ms PSON Control to FPO Turnoff Delay

• 38-ms PSON Control Debounce

• 73-µs Width Noise Deglitches

• Wide Supply Voltage Range From 4 V to 15 V
