增强型产品:具有 5.5μA 静态电流的低输入电压、0.7V 升压转换器 6-SC70 -55 to 125
The TPS61222 provides a power-supply solution for products powered by either a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Possible output currents depend on the input-to-output voltage ratio. The boost converter is based on a hysteretic controller topology using synchronous rectification to obtain maximum efficiency at minimal quiescent currents. The output voltage of the adjustable version can be programmed by an external resistor divider, or is set internally to a fixed output voltage. The converter can be switched off by a featured enable pin. While being switched off, battery drain is minimized. The device is offered in a 6-pin SC-70 package DCK measuring 2 mm × 2 mm to enable small circuit layout size.
输出接口数 1
输出电压 4.8V ~ 5.19V
输出电流 200 mA
静态电流 5.00 µA
调节输出数 1
开关频率 2MHz MAX
拓扑结构 Boost
输入电压Max 5.5 V
输入电压Min 0.7 V
输出电压Min 5 V
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 0.7V ~ 5.5V
安装方式 Surface Mount
引脚数 6

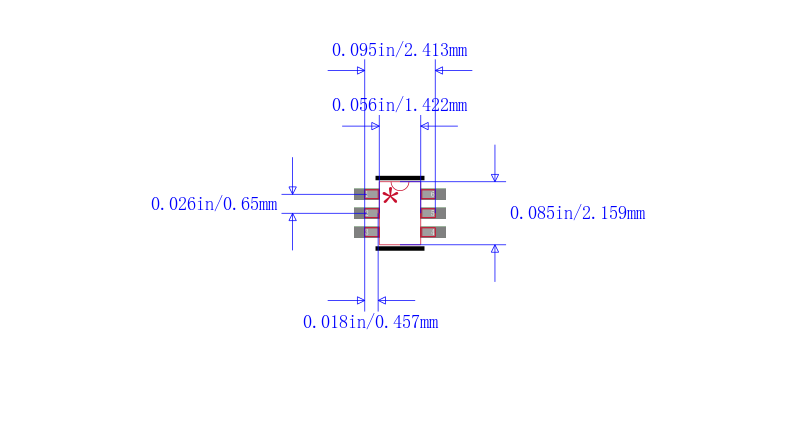

封装 SC-70-6
高度 1 mm
封装 SC-70-6
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61222MDCKTEP TI 德州仪器 | 当前型号 | 当前型号 |
TPS61220DCKR 德州仪器 | 类似代替 | TPS61222MDCKTEP和TPS61220DCKR的区别 |
TPS61220DCKT 德州仪器 | 类似代替 | TPS61222MDCKTEP和TPS61220DCKT的区别 |
V62/12603-01XE 德州仪器 | 类似代替 | TPS61222MDCKTEP和V62/12603-01XE的区别 |
