TEXAS INSTRUMENTS TPS71715DCKT 固定电压稳压器, LDO, 2.5V至6.5V, 170mV压差, 1.5V输出, 150mA输出, SC-70-5
LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments
得捷:
IC REG LINEAR 1.5V 150MA SC70-5
立创商城:
TPS71715DCKT
德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
低压差稳压器 LN High-BW PSRR 150mA
e络盟:
固定电压稳压器, LDO, 2.5V至6.5V, 170mV压差, 1.5V输出, 150mA输出, SC-70-5
艾睿:
Keep the energy stable for every system by using this LDO TPS71715DCKT linear regulator by Texas Instruments. This device has a maximum power dissipation of 320 mW. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.17@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 2.5 V and 6.5 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Using a load regulation of 120uV/mATyp and line regulation of 125uV/VTyp is needed for a programmable DC power supply. Its maximum power dissipation is 320 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1.5V 0.15A 5-Pin SC-70 T/R
Verical:
LDO Regulator Pos 1.5V 0.15A 5-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS TPS71715DCKT Fixed LDO Voltage Regulator, 2.5V to 6.5V, 170mV Dropout, 1.5Vout, 150mAout, SC-70-5
DeviceMart:
IC REG LDO 1.5V .15A SC70-5
额定功率 0.32 W
输出接口数 1
输出电压 1.5 V
输出电流 150 mA

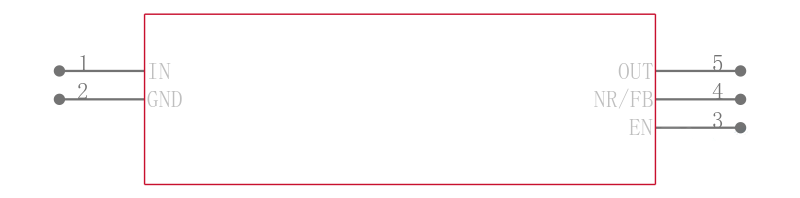

针脚数 5
耗散功率 0.32 W
静态电流 0.045 mA
输出电容类型 Ceramic
跌落电压 170 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
精度 ±3 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 5

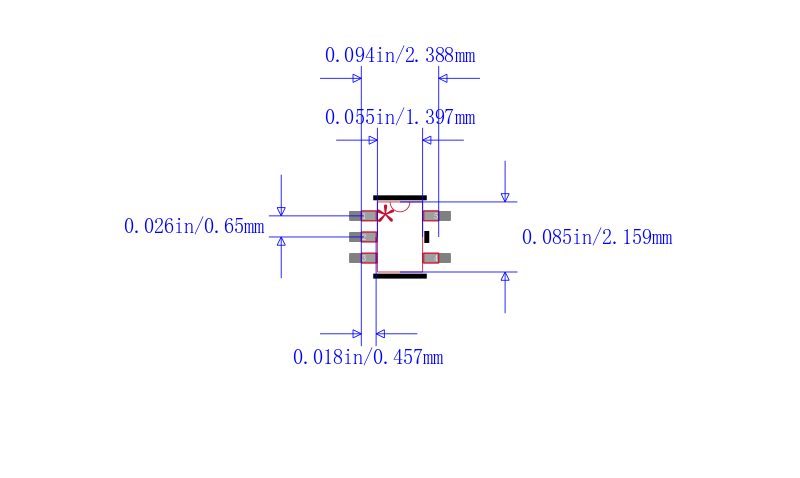

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 电源管理, 通信与网络, 消费电子产品, 便携式器材, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71715DCKT TI 德州仪器 | 当前型号 | 当前型号 |
TPS71715DCKR 德州仪器 | 类似代替 | TPS71715DCKT和TPS71715DCKR的区别 |
TPS71715DCKTG4 德州仪器 | 类似代替 | TPS71715DCKT和TPS71715DCKTG4的区别 |
TPS71715DCKRG4 德州仪器 | 类似代替 | TPS71715DCKT和TPS71715DCKRG4的区别 |
