B 33uF ±20% 8V
Are you looking for a capacitor with a low ESR value? Then you"re in luck, this polymer electrolyte from Kemet has just that! It can withstand a voltage of 8 VDC. It has 2 terminals. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its leakage current is 26 μA. Its capacitance value is 33uF. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C.
额定电压DC 8 V
电容 33 µF
等效串联电阻ESR 40mΩ @100kHz
容差 ±20 %
产品系列 T520
纹波电流 500 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 8 V
安装方式 Surface Mount

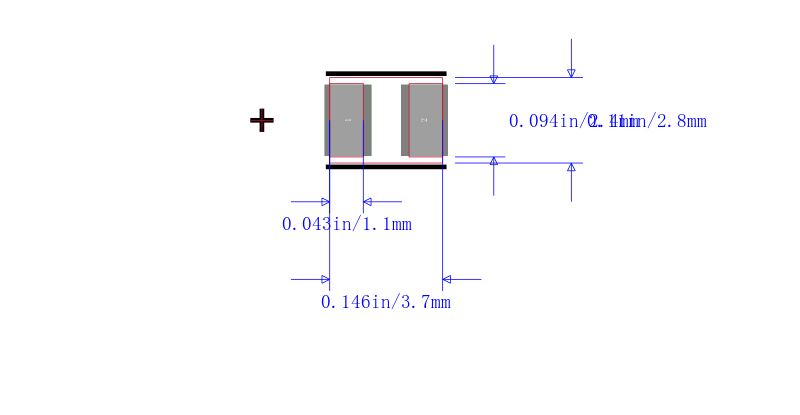

封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装 3528
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命（小时） 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T520B336M008ATE040 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T520B336M010ATE040 基美 | 功能相似 | T520B336M008ATE040和T520B336M010ATE040的区别 |
T520T336M010ATE040 基美 | 功能相似 | T520B336M008ATE040和T520T336M010ATE040的区别 |
