TEXAS INSTRUMENTS TPS715A33DRVT 固定电压稳压器, LDO, 2.5V至24V, 670mV压差, 3.3V输出, 80mA输出, SON-6
The is a 3.3V fixed output low-dropout LDO Linear Regulator provide the benefits of high input voltage, low-dropout LDO voltage and low-power operation. The device is stable with any capacitor greater than or equal to 0.47µF. A PMOS pass element functions as a low-value resistor. The low-dropout LDO voltage, typically 670mV at 80mA of load current, is directly proportional to the load current. The low quiescent current is nearly constant over the entire range of output load current.
- .
- 3.2µA Low quiescent current at 80mA
- .
- Specified current limit
- .
- Green product and no Sb/Br
输出接口数 1
输出电压 3.3 V
输出电流 80 mA
针脚数 6
耗散功率 1540 mW
静态电流 3.00 µA
输出电容类型 Ceramic
跌落电压 670 mV
调节输出数 1
输入电压Max 24 V
输入电压Min 2.5 V
输出电流Max 0.08 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1540 mW
精度 4 %
输入电压 ≤24 V
安装方式 Surface Mount
引脚数 6

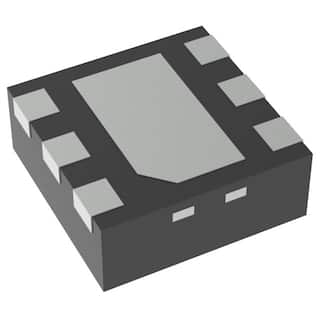

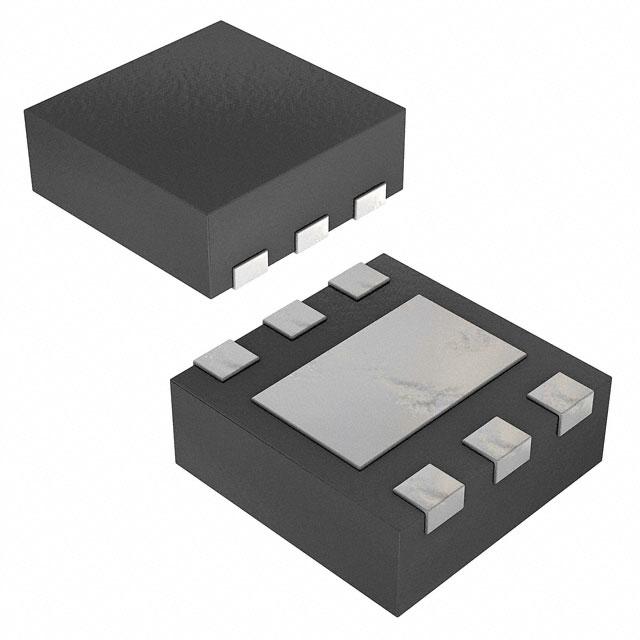

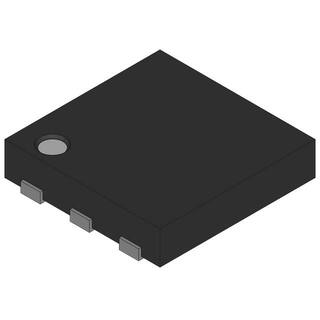

封装 WDFN-6
长度 2 mm
宽度 2 mm
高度 0.75 mm
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS715A33DRVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS715A33DRVR 德州仪器 | 类似代替 | TPS715A33DRVT和TPS715A33DRVR的区别 |
TPS715A33DRVTG4 德州仪器 | 类似代替 | TPS715A33DRVT和TPS715A33DRVTG4的区别 |
TPS715A33DRVRG4 德州仪器 | 类似代替 | TPS715A33DRVT和TPS715A33DRVRG4的区别 |
