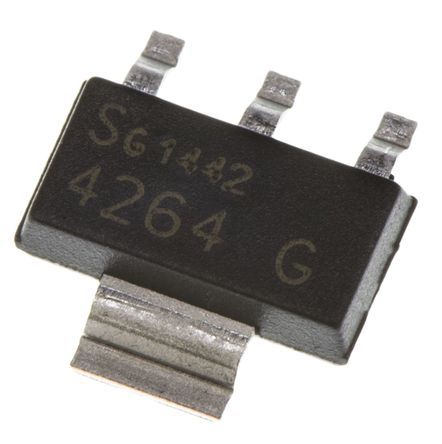

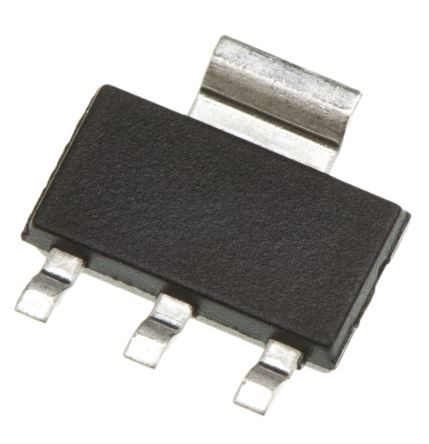

TLE4264GHTSA1

INFINEON  TLE4264GHTSA1  固定电压稳压器, LDO, 5.5V至45V, 250mV压差, 5V输出, 100mA输出, SOT-223-3

LDO 稳压器，

Infineon 的一系列固定电压 LDO（低压降）线性稳压器

得捷:
IC REG LINEAR 5V 100MA SOT223-4

欧时:
Infineon TLE4264GHTSA1 LDO 稳压器, 5 V输出, 120mA最大输出, ±2%精确度, 5.5 → 45 V输入, 3+Tab引脚

e络盟:
INFINEON  TLE4264GHTSA1  固定电压稳压器, LDO, 5.5V至45V, 250mV压差, 5V输出, 100mA输出, SOT-223-3

艾睿:
Use the LDO TLE4264GHTSA1 linear regulator from Infineon Technologies to maintain a constant output voltage. Its typical dropout voltage at current is 0.25@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.12Min A. The best way to provide power to your application is by using this, which needs a voltage of at least 5.5 V and no higher than 45 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 40mV a constant current can be produced at the output of your circuit. The maximum dropout voltage is 0.5@100mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.

Chip1Stop:
LDO Regulator Pos 5V 0.12A Automotive 4-Pin3+Tab SOT-223

Verical:
LDO Regulator Pos 5V 0.12A Automotive 4-Pin3+Tab SOT-223 T/R
