10 -W立体声D类音频功率放大器 10-W STEREO CLASS-D AUDIO POWER AMPLIFIER
The TPA3101D2 is a 10-W per channel efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3101D2 can drive stereo speakers as low as 4 . The high efficiency of the TPA3101D2, 87%, eliminates the need for an external heat sink when playing music.
The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB.
The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts with an auto recovery feature and monitor output.
电源电压DC 26.0 V
耗散功率 4390 mW
静态电流 22.0 mA
输出功率 10 W
增益 36 dB
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 4390 mW
电源电压 10V ~ 26V
安装方式 Surface Mount
引脚数 48

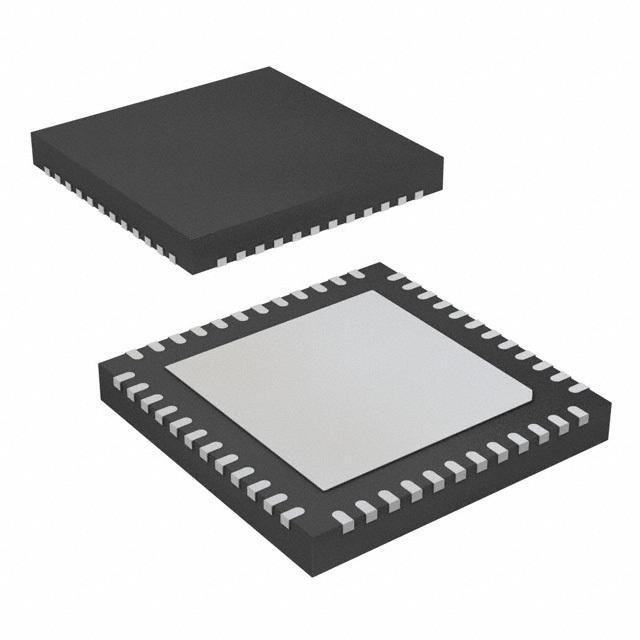

封装 VQFN-48
长度 7 mm
宽度 7 mm
高度 0.9 mm
封装 VQFN-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPA3101D2RGZR TI 德州仪器 | 当前型号 | 当前型号 |
TPA3101D2RGZT 德州仪器 | 类似代替 | TPA3101D2RGZR和TPA3101D2RGZT的区别 |
TPA3101D2RGZRG4 德州仪器 | 类似代替 | TPA3101D2RGZR和TPA3101D2RGZRG4的区别 |
