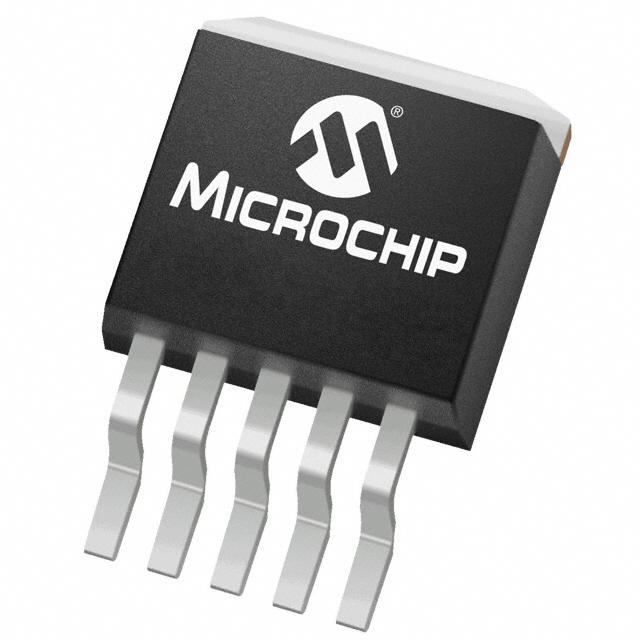

500毫安,固定输出, CMOS LDO ,带有关断 500 mA, Fixed-Output, CMOS LDO with Shutdown
Description
The TC1263 is a fixed-output, high-accuracy typically ±0.5% CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1263’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 µA at full load 20 to 60 times lower than in bipolar regulators.
Features
• Very Low Dropout Voltage
• 500 mA Output Current
• High-Output Voltage Accuracy
• Standard or Custom Output Voltages
• Overcurrent and Overtemperature Protection
• SHDN Input for Active Power Management
• ERROR Output Can Be Used as a Low Battery
Detector SOIC only
Applications
• Battery-Operated Systems
• Portable Computers
• Medical Instruments
• Instrumentation
• Cellular/GSM/PHS Phones
• Linear Post-Regulators for SMPS
• Pagers
输出接口数 1
输入电压DC 2.70V min
输出电压 3 V
输出电流 500 mA
静态电流 80.0 µA
输出电容类型 Tantalum
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
长度 10.11 mm
宽度 8.89 mm
高度 4.5 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
