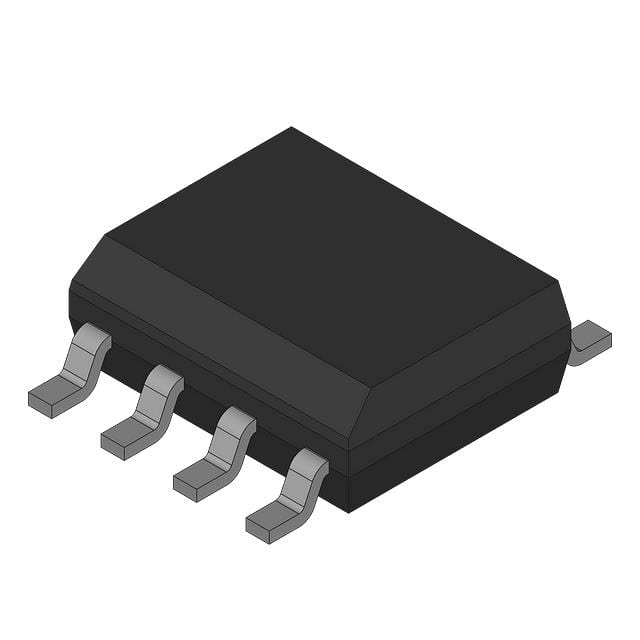

固定LDO稳压器, AEC-Q100, 2.3 V至20 V, 270 mV压差, 3.3 V/300 mA输出, SOIC-8
TLS203B0EJ V33, SP001195394
得捷:
IC REG LIN 3.3V 300MA 8DSO E-PAD
欧时:
Infineon TLS203B0EJV33XUMA1
艾睿:
This LDO TLS203B0EJV33XUMA1 linear regulator developed by Infineon Technologies keeps the power stable! This voltage regulation device has single output. This will operate at a minimum voltage of 2.3 V and a maximum voltage of 20 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 28mV and line regulation of 20mV. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.3A 8-Pin DSO EP T/R
输出接口数 1
输出电压 3.3 V
输出电流 300 mA
针脚数 8
静态电流 0.03 mA
跌落电压 270 mV
输入电压Max 20 V
输入电压Min 3.8 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 3.8V ~ 20V
安装方式 Surface Mount
引脚数 8
封装 PG-DSO-8
封装 PG-DSO-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
