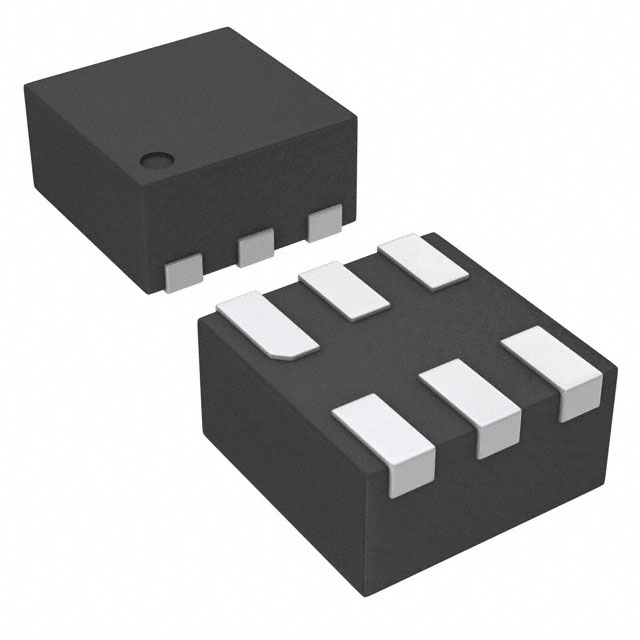

TEXAS INSTRUMENTS TPS71718DSER 固定电压稳压器, LDO, 2.5V至6.5V, 170mV压差, 1.8V输出, 150mA输出, WSON-6
The is a single channel low dropout LDO low power linear regulator with fixed output in 6 pin WSON package. This regulator offers very high power supply rejection PSRR while maintaining very low 45µA ground current. It uses an advanced BiCMOS process and PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response and excellent PSRR performance. The TPS71718 is stable with 1µF ceramic output capacitor. It uses a precision voltage reference and feedback loop to achieve worst case accuracy of 3% over all load, line, process and temperature variations. This device combines high performance required by many RF and precision analogue applications with ultra low current consumption. The combination of high performance and low ground current make the TPS71718 as an excellent choice for battery powered applications.
This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage to the device.
输出接口数 1
输出电压 1.8 V
输出电流 150 mA
供电电流 100 µA
针脚数 6
耗散功率 0.485 W
静态电流 45.0 µA
输出电容类型 Ceramic
跌落电压 170 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电压Min 1.8 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 485 mW
精度 ±3 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 6
封装 WFDFN-6
长度 1.5 mm
宽度 1.5 mm
高度 0.75 mm
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71718DSER TI 德州仪器 | 当前型号 | 当前型号 |
TPS71718DSETG4 德州仪器 | 完全替代 | TPS71718DSER和TPS71718DSETG4的区别 |
TPS71718DSERG4 德州仪器 | 类似代替 | TPS71718DSER和TPS71718DSERG4的区别 |
TPS71718DSET 德州仪器 | 类似代替 | TPS71718DSER和TPS71718DSET的区别 |
