低噪声,高带宽PSRR低压降150mA线性稳压器 Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator
Control the voltage level of your circuit with this LDO linear regulator from Texas Instruments. It has an overall accuracy of ±3 %. This device has a maximum power dissipation of 1540 mW. Its typical dropout voltage at current is 0.17@150mA V. This voltage regulation device"s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.5 V and a maximum voltage of 6.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1 V, this is power management at its best. At a load regulation of 120uV/mATyp and line regulation of 125uV/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 1540 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输出电压 1 V
输出电流 150 mA
供电电流 100 µA
耗散功率 1.54 W
静态电流 45.0 µA
输出电容类型 Ceramic
跌落电压 0.17V @150mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电压Min 1 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1540 mW
精度 ±3 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 6

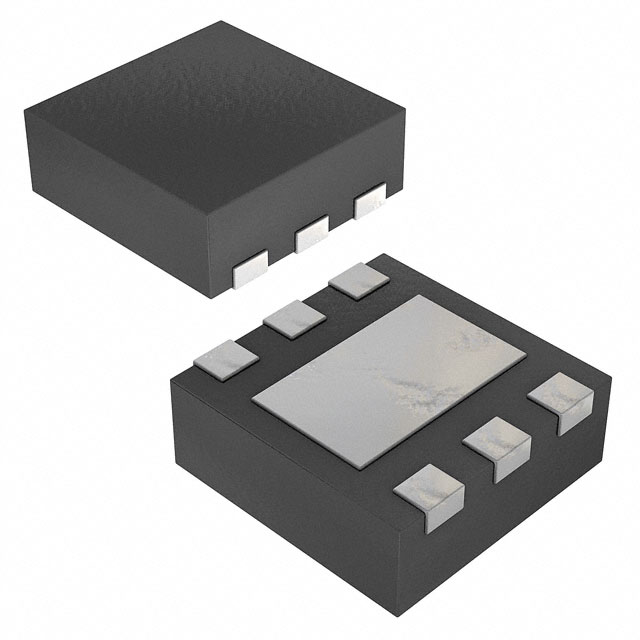

封装 WSON-6
长度 2 mm
宽度 2 mm
高度 0.75 mm
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71710DRVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS71710DRVT 德州仪器 | 类似代替 | TPS71710DRVR和TPS71710DRVT的区别 |
