350mA电流超低VIN ,射频低压差线性稳压器,具有BIAS引脚 350mA, Ultra-Low VIN, RF Low-Dropout Linear Regulator with Bias Pin

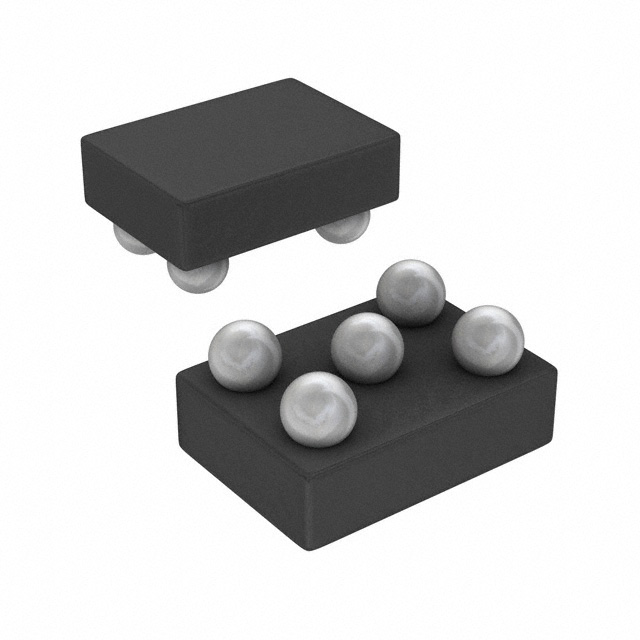

Linear Voltage Regulator IC 1 Output 350mA 5-DSBGA 0.96x1.33
得捷:
IC REG LINEAR 1.2V 350MA 5DSBGA
立创商城:
TPS72012YZUR
德州仪器TI:
350-mA, low-VIN 1.1-V, high-PSRR, low-IQ, low-dropout voltage regulator with enable
艾睿:
Keep calm and stay stable by implementing this LDO TPS72012YZUR linear regulator developed by Texas Instruments. This device has a maximum power dissipation of 403 mW. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.11@350mA V. This voltage regulation device&s;s single output can produce a current up to 0.35 A. By only needing an input voltage of 1.1 V with a maximum of 4.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. At a load regulation of -15uV/mATyp and line regulation of 16uV/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 403 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.2@350mA V.
安富利:
LDO Regulator Pos 1.2V 0.35A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 1.2V 0.35A 5-Pin DSBGA T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 350mA 5-DSBGA 1x1.37
输出接口数 1
输出电压 1.2 V
输出电流 350 mA
耗散功率 0.403 W
静态电流 38.0 µA
输出电容类型 Ceramic
跌落电压 0.11V @350mA
调节输出数 1
输入电压Max 4.5 V
输入电压Min 1.1 V
输出电流Max 0.35 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 403 mW
精度 ±2 %
输入电压 ≤4.5 V
安装方式 Surface Mount
引脚数 5
封装 UFBGA-5
封装 UFBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS72012YZUR TI 德州仪器 | 当前型号 | 当前型号 |
TPS72012YZUT 德州仪器 | 类似代替 | TPS72012YZUR和TPS72012YZUT的区别 |
TPS72012DRVT 德州仪器 | 功能相似 | TPS72012YZUR和TPS72012DRVT的区别 |
TPS72012DRVR 德州仪器 | 功能相似 | TPS72012YZUR和TPS72012DRVR的区别 |
