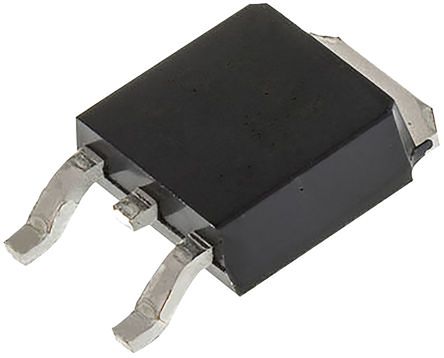

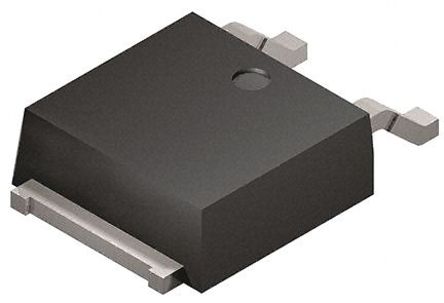

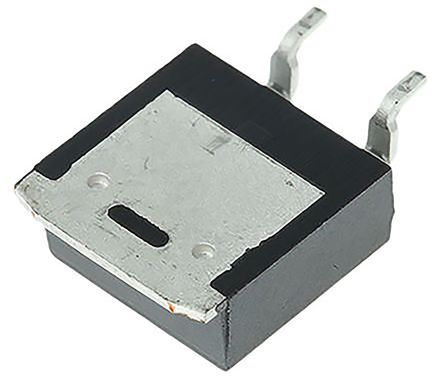

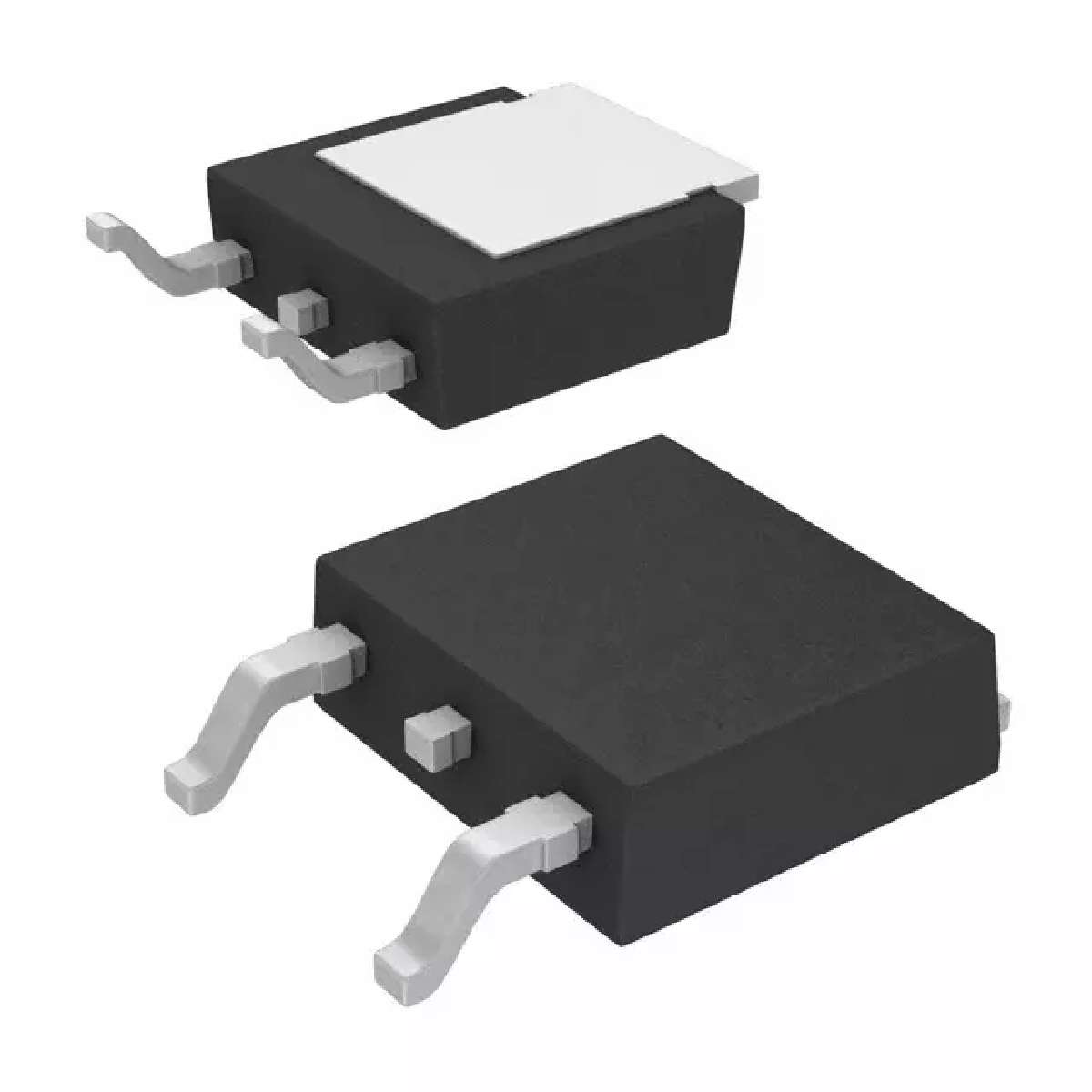

INFINEON TLE42744DV50ATMA1 固定电压稳压器, LDO, 5.5V至40V, 250mV压差, 5V输出, 400mA输出, TO-252-3
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
得捷:
IC REG LINEAR 5V 400MA TO252-3
欧时:
### LDO 电压调节器,InfineonInfineon 的一系列固定电压 LDO(低压降)线性调节器### 线性电压调节器,Infineon我们有广泛的线性电压调节器。 低压降或 LDO 调节器可在较小的输入-输出差电压下工作。 线性电压调节器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声和高 PSRR。
立创商城:
TLE42744DV50ATMA1
贸泽:
LDO Voltage Regulators Low Dropout Linear Voltage Regulator
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TLE42744DV50ATMA1 linear regulator from Infineon Technologies. Its typical dropout voltage at current is 0.25@250mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.4 A. Using the part will provide the power your application needs by requiring a voltage only of 5.5 V and not exceeding a voltage of 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 50mV and line regulation of 25mV. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive. The maximum dropout voltage is 0.5@250mA V.
安富利:
LDO Regulator Pos 5V 0.4A 3-Pin2+Tab TO-252
Chip1Stop:
LDO Regulator Pos 5V 0.4A Automotive 3-Pin2+Tab TO-252
TME:
Voltage regulator; LDO, linear, fixed; 5V; 0.4A; DPAK; SMD
Verical:
LDO Regulator Pos 5V 0.4A Automotive 3-Pin2+Tab DPAK T/R
Newark:
# INFINEON TLE42744DV50ATMA1 Fixed LDO Voltage Regulator, 5.5V to 40V, 250mV Dropout, 5Vout, 400mAout, TO-252-3
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 400mA PG-TO252-3
输出接口数 1
输出电压 5 V
输出电流 400 mA
供电电流 220µA ~ 30mA
针脚数 3
静态电流 220 µA
跌落电压 250 mV
输入电压Max 40 V
输入电压Min 5.5 V
输出电压Min 5 V
输出电流Max 400 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5V ~ 40V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.5 mm
宽度 6.22 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Power Management, Automotive, Automotive general, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLE42744DV50ATMA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
TLE4274DV50ATMA1 英飞凌 | 完全替代 | TLE42744DV50ATMA1和TLE4274DV50ATMA1的区别 |
TLE4274DV50NTMA1 英飞凌 | 类似代替 | TLE42744DV50ATMA1和TLE4274DV50NTMA1的区别 |
