LMV/TLV 系列### 电压参考,Texas Instruments精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
并联电压基准,可调,LMV/TLV 系列
### 电压参考,Texas Instruments
精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
得捷:
IC VREF SHUNT ADJ 0.5% SOT23-5
立创商城:
并联 15mA
德州仪器TI:
0.5% accuracy, low-voltage, adjustable precision shunt regulator
欧时:
### 并联电压基准,可调,LMV/TLV 系列### 电压参考,Texas Instruments精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
艾睿:
Even in the event of large power supply variations, this TLV431BQDBVT voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. With an output that has a voltage of 1.24 to 6 V, this is power management at its best. Use this part at voltages lower than 7 V. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R
Chip1Stop:
Shunt Voltage Reference Low-Voltage Adjustable Precision Shunt Regulator V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R
Verical:
V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R
DeviceMart:
IC VREF SHUNT PREC ADJ SOT23-5
容差 ±0.5 %
输出电压 1.24V ~ 6V
输出电流 15 mA
通道数 1
输入电压Max 7 V
输出电压Max 6 V
输出电压Min 1.24 V
输出电流Max 15 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
额定电压 1.24V ~ 6V
输入电压 1.24V ~ 6V
安装方式 Surface Mount
引脚数 5

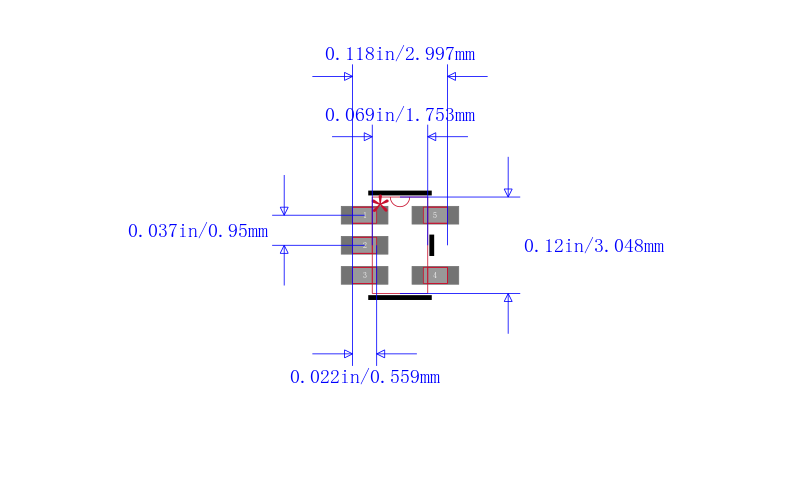

封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
温度系数 ±138 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV431BQDBVT TI 德州仪器 | 当前型号 | 当前型号 |
TLV431AIDBVR 德州仪器 | 类似代替 | TLV431BQDBVT和TLV431AIDBVR的区别 |
TLV431IDBVR 德州仪器 | 类似代替 | TLV431BQDBVT和TLV431IDBVR的区别 |
TLV431BQDBVR 德州仪器 | 类似代替 | TLV431BQDBVT和TLV431BQDBVR的区别 |
