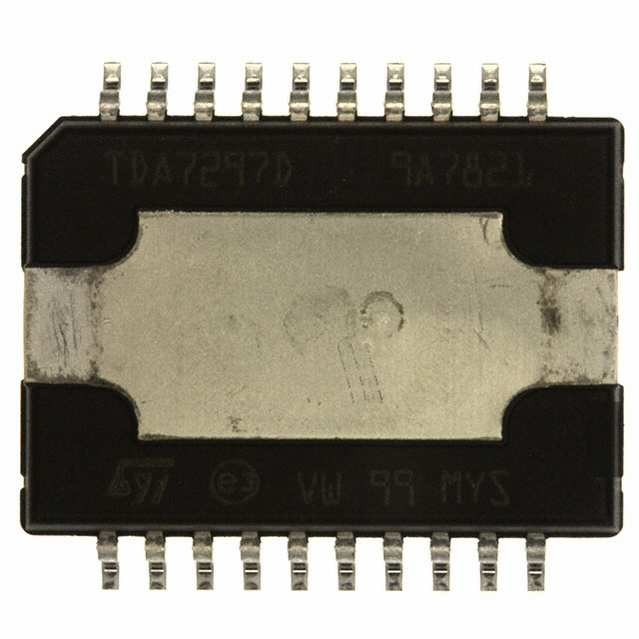

Audio Amp Speaker 2CH Stereo 10W Class-AB 20Pin PowerSO T/R
Amplify a wide range of sounds with this class D amplifier from STMicroelectronics. Its maximum power dissipation is 33000 mW. This audio amplifier can handle a current up to 2000 mA. It has a maximum load resistance of 8 Ohm. It has a single input signal and a differential output signal. It has a 2-channel stereo output. This audio amplifier has a temperature range of 0 °C to 70 °C. This device uses a single power supply. Its typical PSRR is 56 dB.
输出电流 2000 mA
电路数 1
通道数 2
耗散功率 33000 mW
输出功率 10 W
增益 32 dB
输出电流Max 2000 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 33000 mW
电源电压 6.5V ~ 18V
电源电压Max 18 V
电源电压Min 6.5 V
安装方式 Surface Mount
引脚数 20

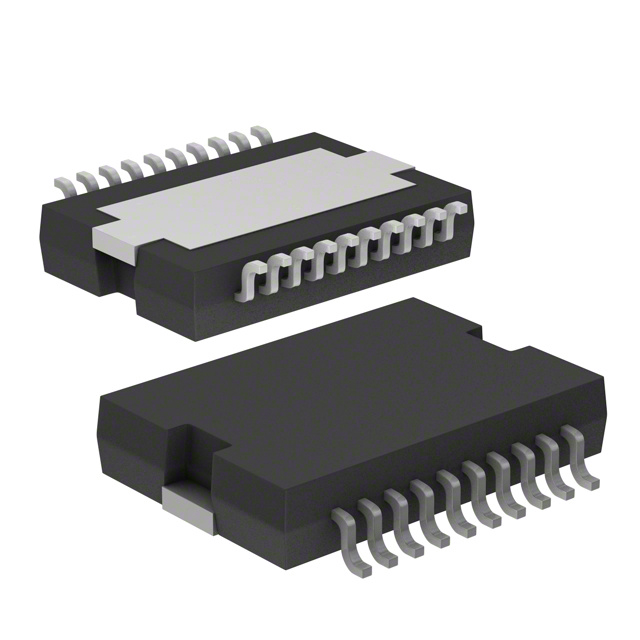

封装 PowerSO-20
长度 16 mm
宽度 11.1 mm
高度 3.3 mm
封装 PowerSO-20
工作温度 0℃ ~ 70℃ TA
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TDA7297D13TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TDA7297D 意法半导体 | 完全替代 | TDA7297D13TR和TDA7297D的区别 |
