500毫安,低静态电流,超低噪声,高PSRR低压降线性稳压器 500mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low-Dropout Linear Regulator
PMIC - 稳压器 - 线性 正 固定 输出 500mA 8-SON(3x3)
得捷:
IC REG LINEAR 3.3V 500MA 8SON
立创商城:
正 Vin=6.5V Vout=3.3V 500mA 66dB
德州仪器TI:
500-mA, low-IQ, low-dropout voltage regulator with enable
艾睿:
This LDO TPS73533DRBR linear regulator developed by Texas Instruments keeps the power stable! Its typical dropout voltage at current is 0.28@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 6.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.005%/mATyp and line regulation of 0.02%/VTyp. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.5@500mA V.
安富利:
LDO Regulator Pos 3.3V 0.5A 8-Pin VSON EP T/R
Verical:
LDO Regulator Pos 3.3V 0.5A 8-Pin VSON EP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 500mA 8-SON 3x3
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
供电电流 65 µA
耗散功率 1540 W
静态电流 0.046 mA
输出电容类型 Ceramic
跌落电压 0.28V @500mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 8

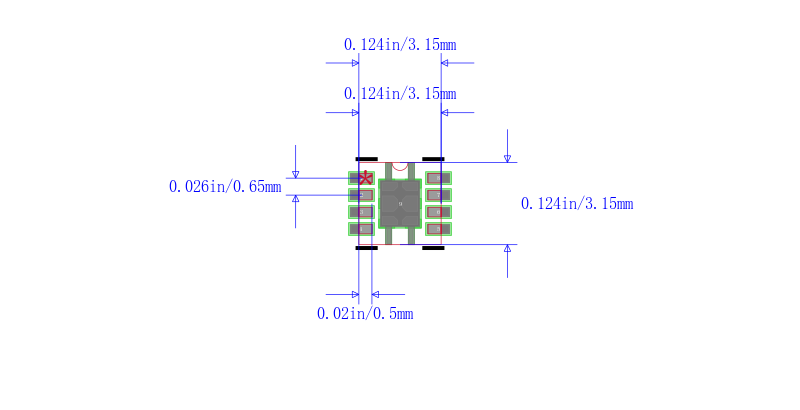

封装 VDFN-8
封装 VDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73533DRBR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73533DRBT 德州仪器 | 类似代替 | TPS73533DRBR和TPS73533DRBT的区别 |
