TDA7388A

4x42W四桥汽车收音机放大器

Description

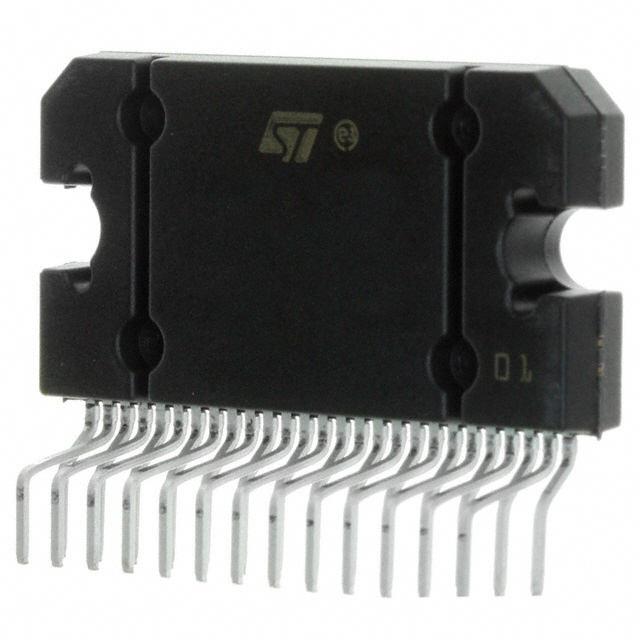

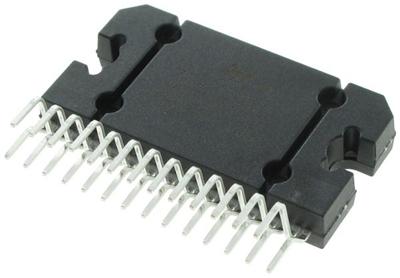

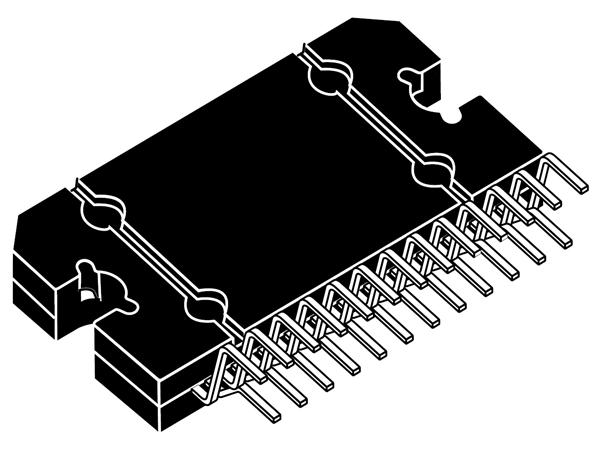

The is a new technology class AB audio power amplifier in Flexiwatt 27 package designed for high end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7388A allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets.

Features

■ High output power capability:

–4 x 42W/4Ωmax.

–4 x 27W/4Ω@ 14.4V, 1KHz, 10%

■ Low distortion

■ Low output noise

■ St-by function

■ Mute function

■ Automute at min. supply voltage detection

■ Low external component count:

– Internally fixed gain 26dB

– No external compensation

– No bootstrap capacitors

■ Clipping detector

■ Offset detector

■ Diagnostic facility for:

– Out to GND short

– Out to VSshort

– Thermal shutdown
