处理器监控电路 PROCESSOR SUPERVISORY CIRCUITS
For additional circuit stability, add Texas Instruments" microprocessor supervisory circuit, which can act as a backup processor in case the original fails, to your circuit. This device has a maximum power dissipation of 437 mW. Its maximum power dissipation is 437 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1.1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.55 V, with a minimum of 4.46 V and a maximum of 4.64 V. This part has an operating temperature range of -40 °C to 85 °C.
电源电压DC 1.10V min
供电电流 0.025 mA
耗散功率 0.437 W
静态电流 15.0 µA
阈值电压 4.55 V
复位电压Min 4.46 V
复位电压Max 4.64 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 437 mW
安装方式 Surface Mount

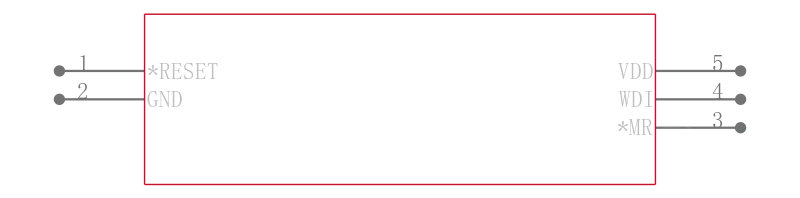

引脚数 5

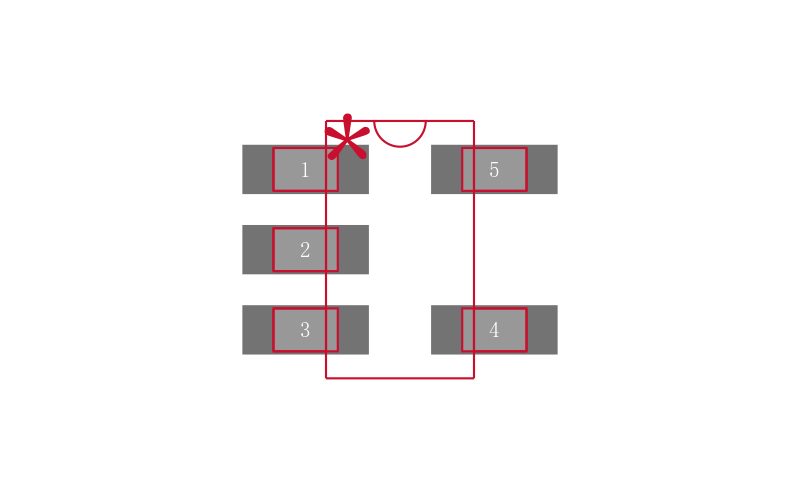

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS3820-50DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS3820-50DBVT 德州仪器 | 类似代替 | TPS3820-50DBVR和TPS3820-50DBVT的区别 |
TPS3820-50DBVRG4 德州仪器 | 类似代替 | TPS3820-50DBVR和TPS3820-50DBVRG4的区别 |
TPS3820-50DBVTG4 德州仪器 | 类似代替 | TPS3820-50DBVR和TPS3820-50DBVTG4的区别 |
