SOT23降压控制器 SOT23 STEP DOWN CONTROLLER
Need to change voltage levels in a DC circuit? Use the step down DC voltage controller from Texas Instruments. With an output that has a voltage of 1.2 to 6.5 V, this is power management at its best. Its output produces a current of 3Max A. This DC voltage controller has single output. This DC voltage controller has an input voltage of 1.8 to 6.5 V. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.
电源电压DC 1.80V min
输出接口数 1
输出电压 1.2V ~ 6.5V
输出电流 3 A
耗散功率 400 mW
静态电流 20.0 µA
调节输出数 1
开关频率 800 kHz
过温保护 No
拓扑结构 Buck
占空比 100 %
输入电压Max 6.5 V
输入电压Min 1.8 V
输出电流Max 3 A
最大占空比 100 %
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
电源电压 1.8V ~ 6.5V
电源电压Max 6.5 V
电源电压Min 1.8 V
输入电压 1.8V ~ 6.5V
安装方式 Surface Mount

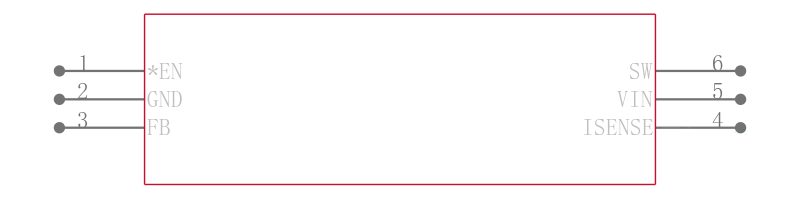

引脚数 6
封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS64203DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS64203DBVT 德州仪器 | 完全替代 | TPS64203DBVR和TPS64203DBVT的区别 |
TPS64203DBVRG4 德州仪器 | 类似代替 | TPS64203DBVR和TPS64203DBVRG4的区别 |
TPS64203DBVTG4 德州仪器 | 类似代替 | TPS64203DBVR和TPS64203DBVTG4的区别 |
