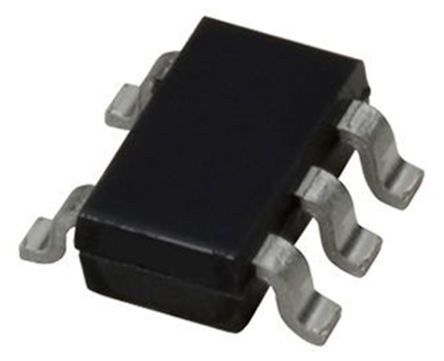

TEXAS INSTRUMENTS TPS71701DCKT 电压稳压器, LDO, 可调, 2.5V至6.5V输入, 170mV压差, 900mV至6.2V/150mA输出, SC-70-5
可调 LDO(低压降)线性电压稳压器,高达 250mA,Texas Instruments
得捷:
IC REG LIN POS ADJ 150MA SC70-5
德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
欧时:
### 可调 LDO(低压降)线性电压稳压器,高达 250mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
电压稳压器, LDO, 可调, 2.5V至6.5V输入, 170mV压差, 900mV至6.2V/150mA输出, SC-70-5
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO TPS71701DCKT linear regulator from Texas Instruments to control your voltage levels! Its typical dropout voltage at current is 0.17@150mA V. This device has a maximum power dissipation of 320 mW. It has an overall accuracy of ±3 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 2.5 V while not exceeding 6.5 V to effectively power your circuit. With an adjustable output that has a voltage of 0.9 to 6.2 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 120uV/mATyp and line regulation of 125uV/VTyp. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.3@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 0.9V to 6.2V 0.15A 5-Pin SC-70 T/R
Chip1Stop:
Single Channel LDO Low Noise, High-Bandwidth PSRR, Low-Dropout 150mA Linear Regulator LDO Regulator Pos 0.9V to 6.2V 0.15A 5-Pin SC-70 T/R
Verical:
LDO Regulator Pos 0.9V to 6.2V 0.15A 5-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS TPS71701DCKT LDO Voltage Regulator, Adjustable, 2.5V to 6.5V in, 170mV drop, 900mV to 6.2V/150mA out, SC-70-5
DeviceMart:
IC REG LDO ADJ .15A SC70-5
额定功率 0.32 W
输出接口数 1
输出电压 0.9V ~ 6.2V
输出电流 150 mA
供电电流 100 µA
针脚数 5
耗散功率 0.32 W
静态电流 0.045 mA
输出电容类型 Ceramic
跌落电压 170 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电压Max 6.2 V
输出电压Min 900 mV
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
精度 ±3 %
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 通信与网络, 传感与仪器, 医用, 消费电子产品, 便携式器材, 音频, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71701DCKT TI 德州仪器 | 当前型号 | 当前型号 |
TPS71701DCKR 德州仪器 | 类似代替 | TPS71701DCKT和TPS71701DCKR的区别 |
TPS71701DCKRG4 德州仪器 | 类似代替 | TPS71701DCKT和TPS71701DCKRG4的区别 |
TPS71701DCKTG4 德州仪器 | 类似代替 | TPS71701DCKT和TPS71701DCKTG4的区别 |
