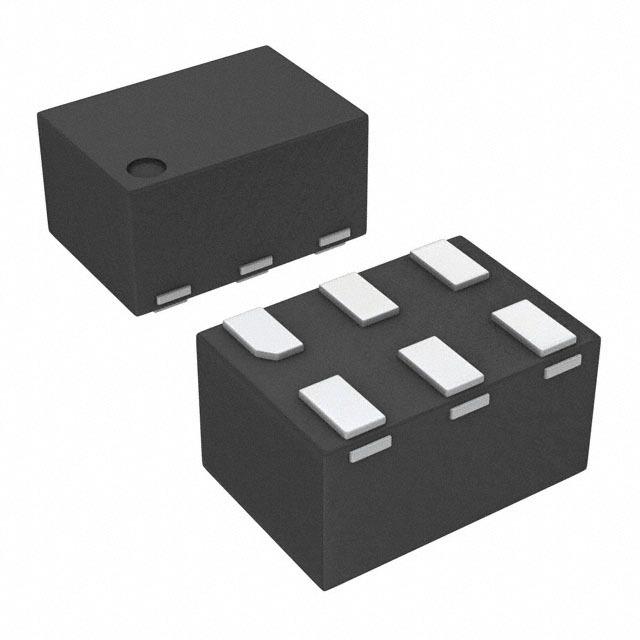

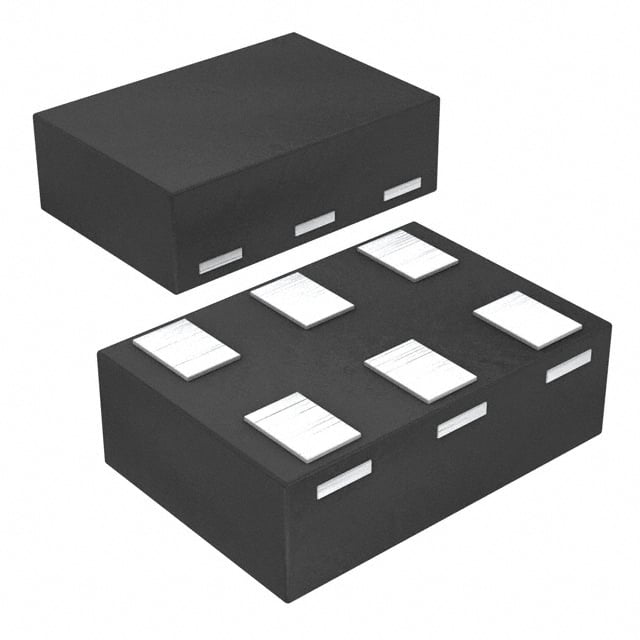

TEXAS INSTRUMENTS TPS62730DRYR 芯片, 直流/直流转换器, 同步降压, 3MHZ, USON-6 新
DESCRIPON
The TPS62730 is a high frequency synchronous step down DC-DC converter optimized for ultra low power wireless applications. The device is optimized to supply TI"s Low Power Wireless sub 1GHz and 2.4GHz RF transceivers and System-On-Chip-solutions. The TPS62730 reduces the current consumption drawn from the battery during TX and RX mode by a high efficient step down voltage conversion. It provides up to 100mA output current and allows the use of tiny and low cost chip inductors and capacitors. With an input voltage range of 1.9V to 3.9V the device supports Li-primary battery chemistries such as Li-SOCl2, Li-SO2, Li-MnO2 and also two cell alkaline batteries.
输出接口数 1
输出电压 2.1 V
输出电流 100 mA
针脚数 6
静态电流 25.0 µA
调节输出数 1
开关频率 3 MHz
拓扑结构 Buck
输入电压Max 3.9 V
输入电压Min 1.9 V
输出电流Max 0.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.9 V
输入电压 1.9V ~ 3.9V
安装方式 Surface Mount
引脚数 6
封装 UFDFN-6
封装 UFDFN-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62730DRYR TI 德州仪器 | 当前型号 | 当前型号 |
TPS62730DRYT 德州仪器 | 类似代替 | TPS62730DRYR和TPS62730DRYT的区别 |
TPS62730DRY 德州仪器 | 类似代替 | TPS62730DRYR和TPS62730DRY的区别 |
